2120100247G

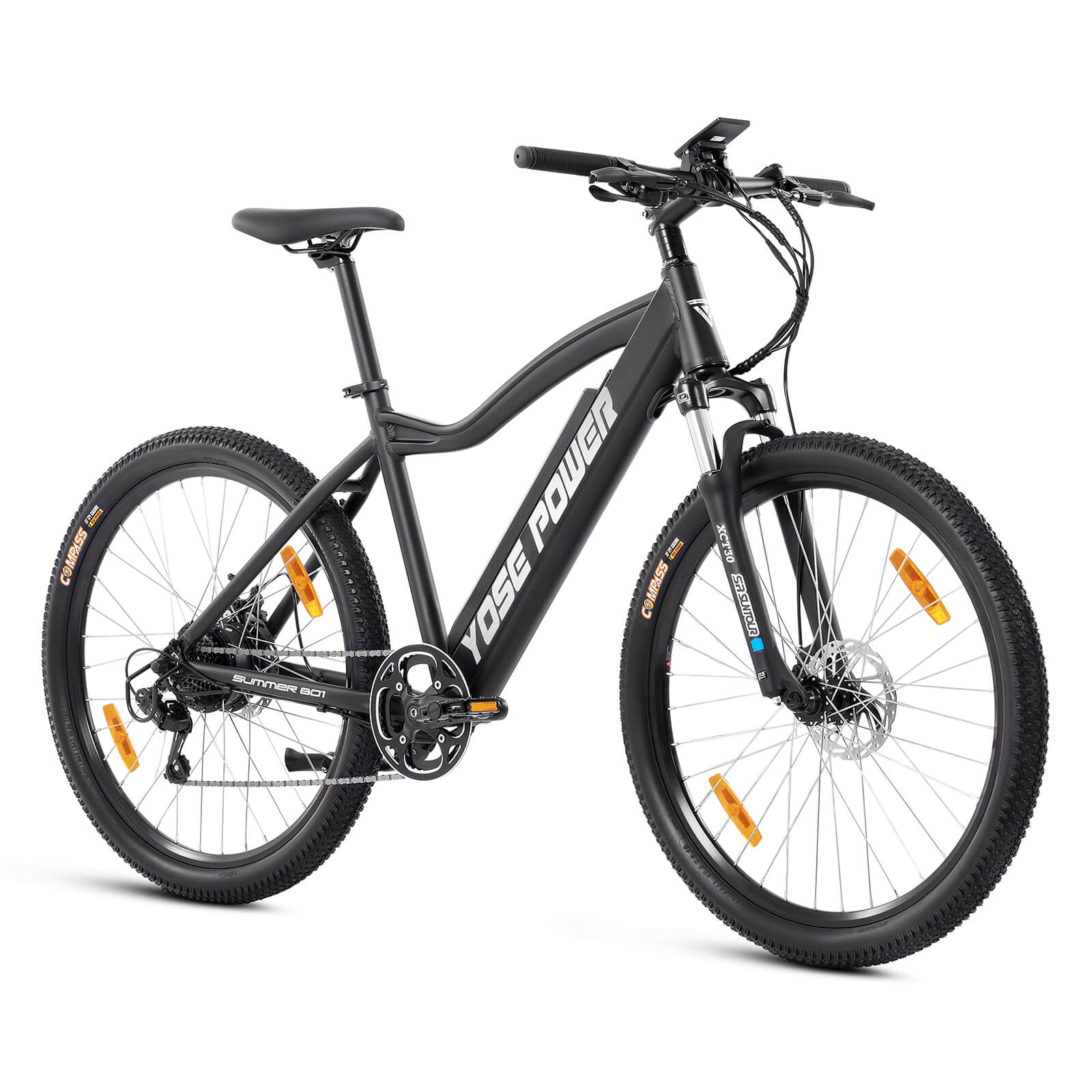

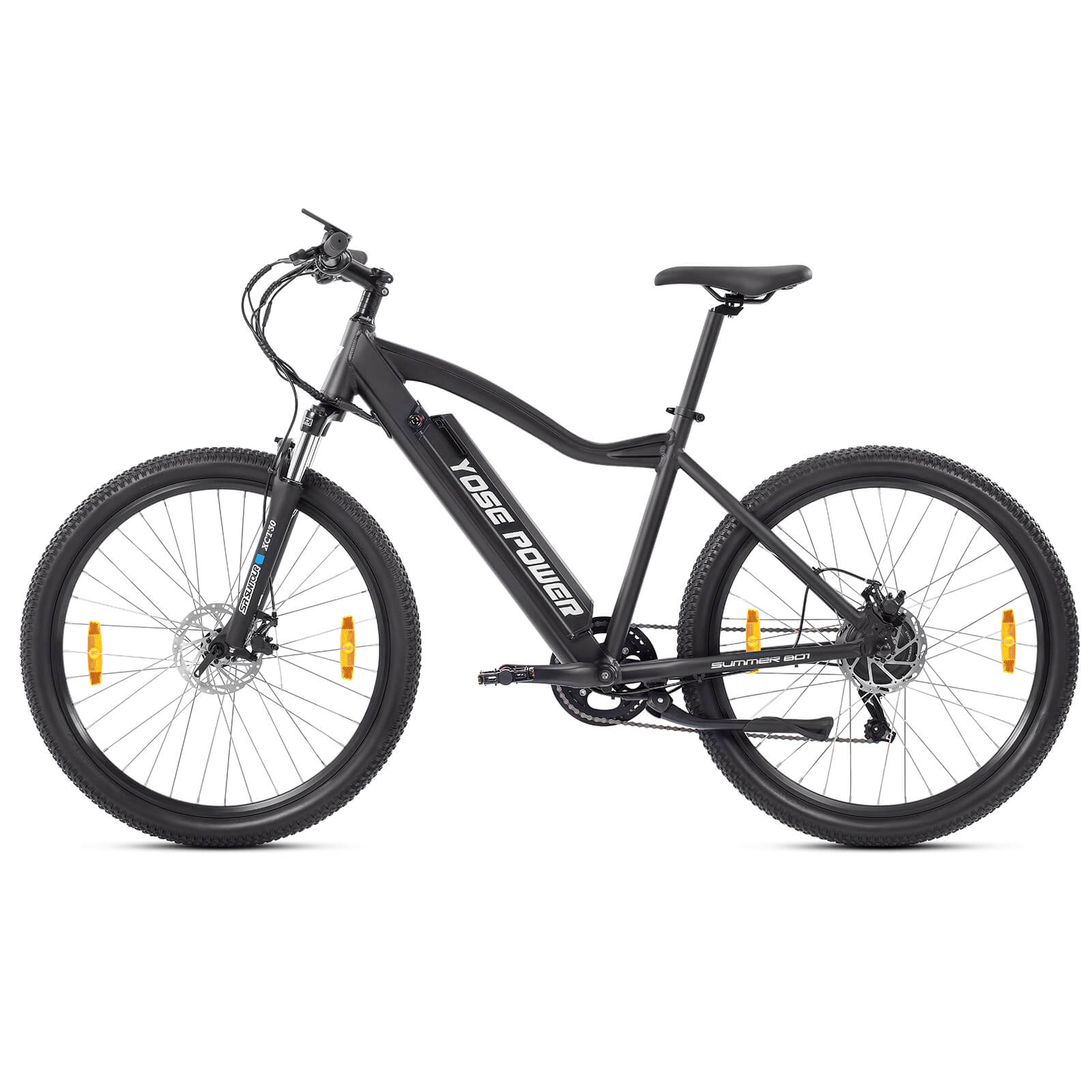

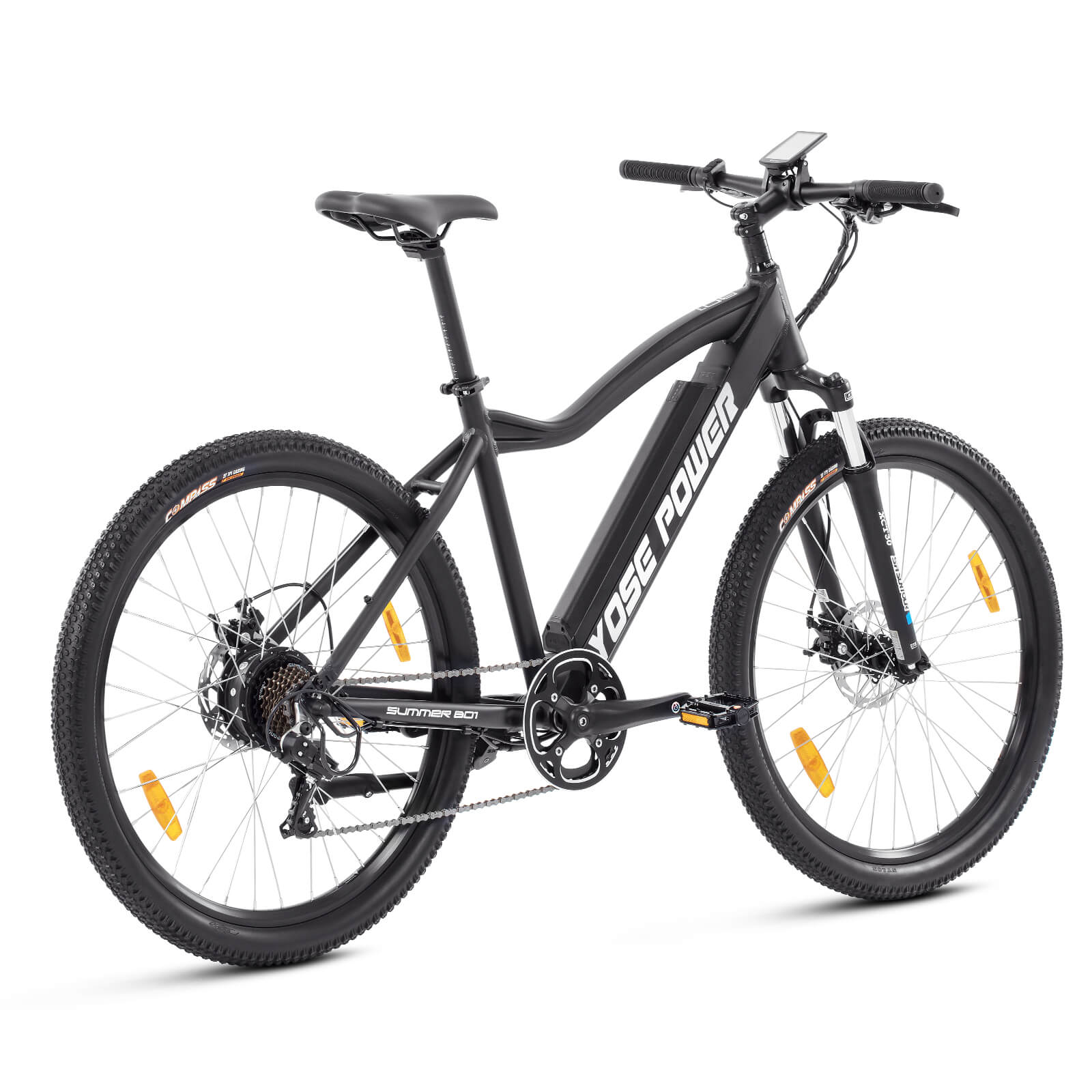

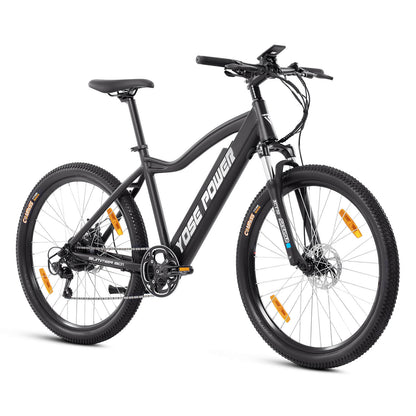

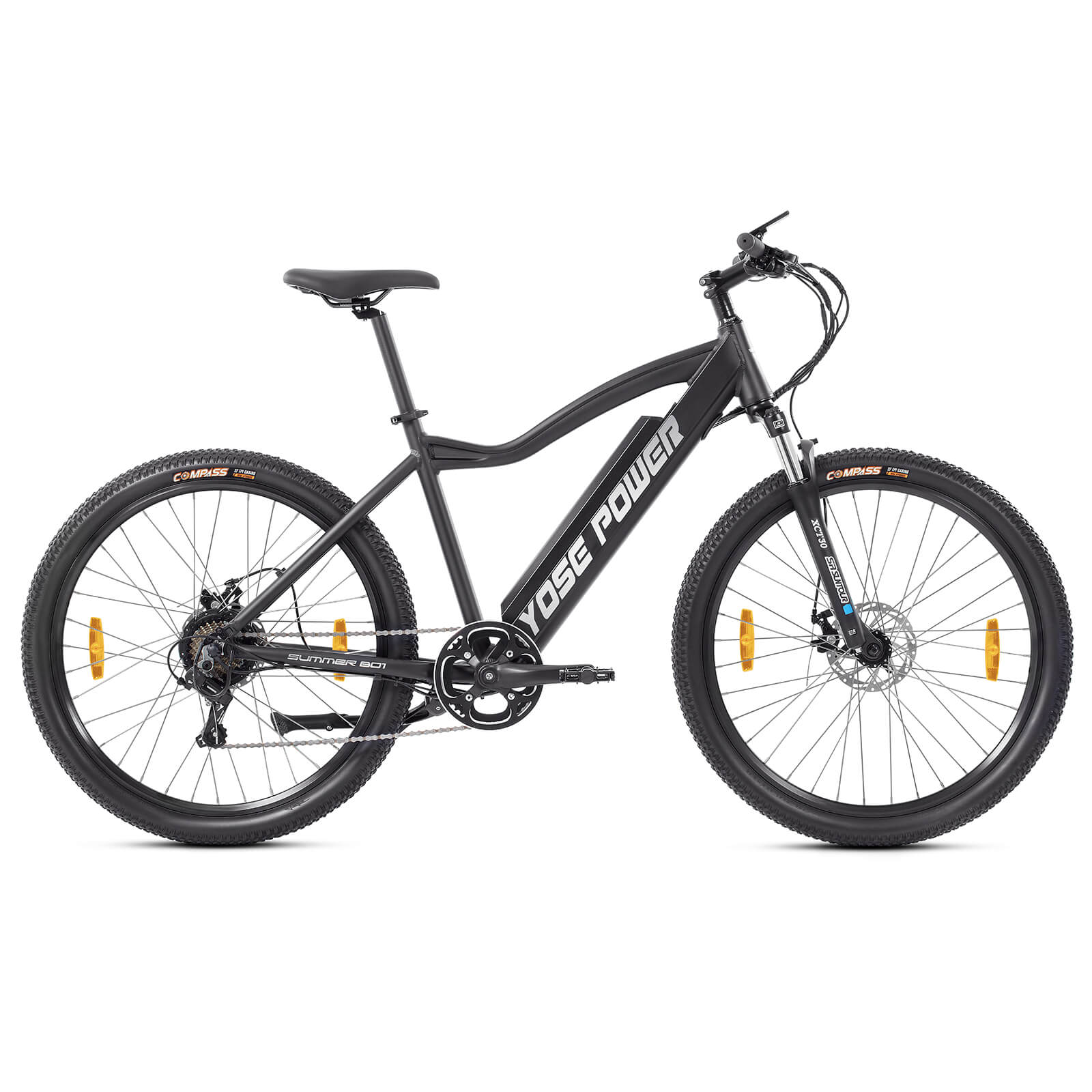

Yose Power Mountain E-Bike with Speed Pedal Sensor Summer B01 BLK
Pairs well with
1.Technical Data

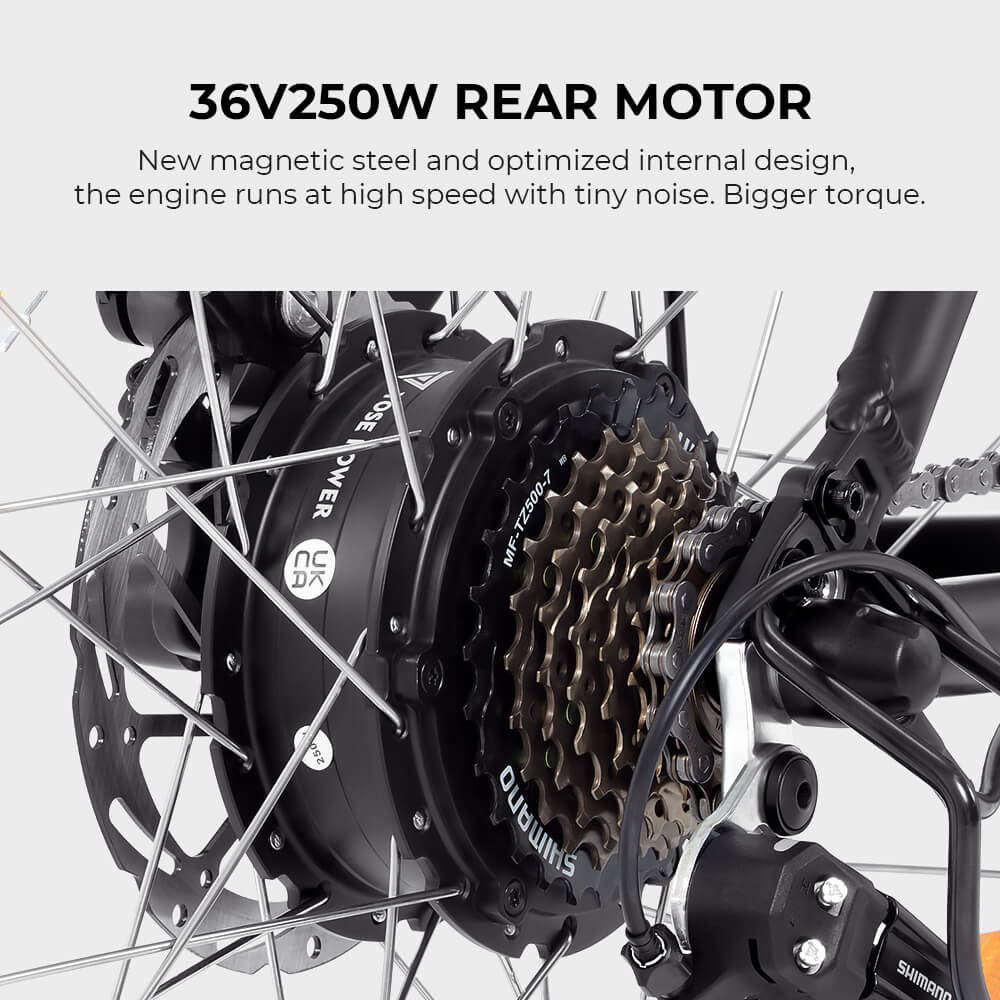

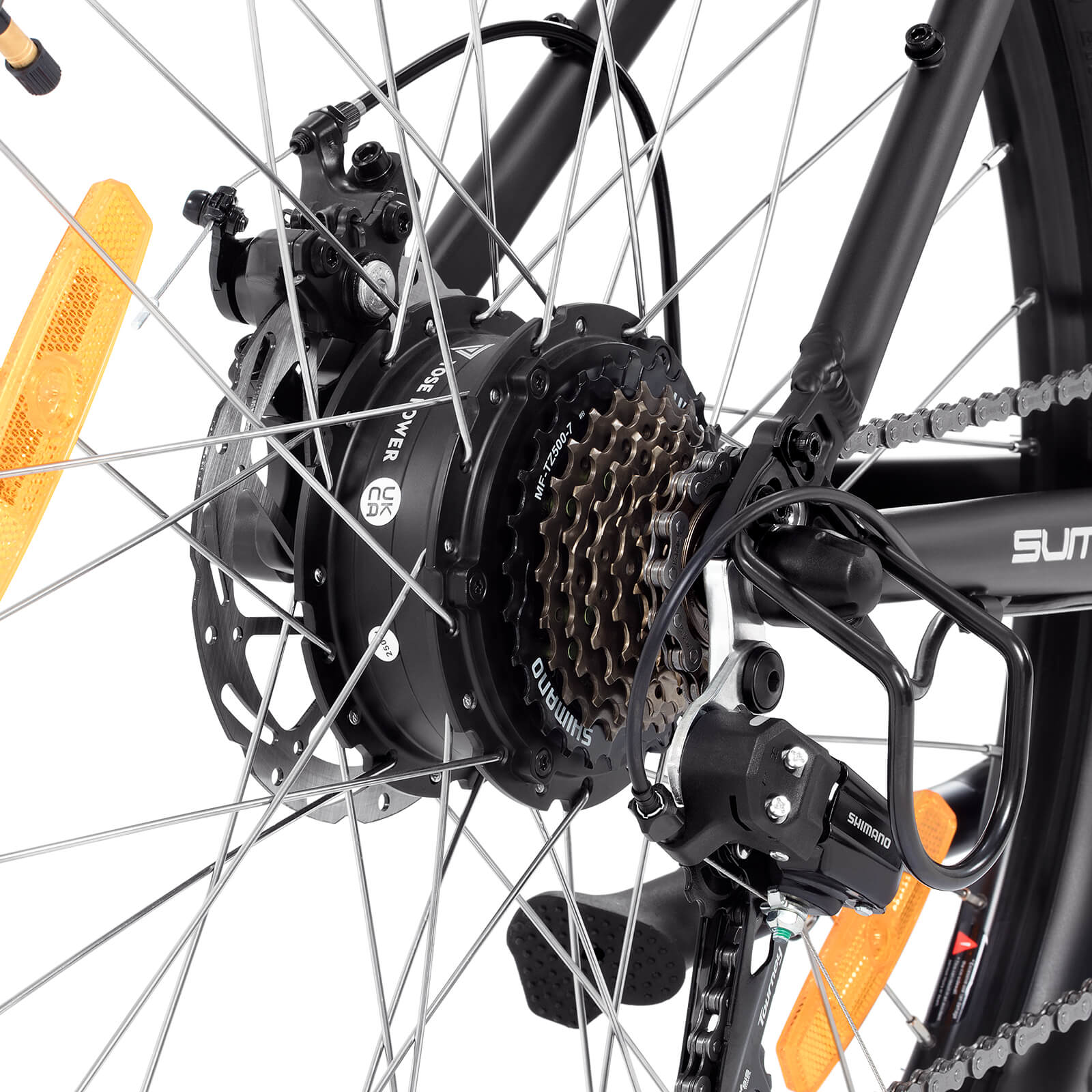

Motor: Shengyi,36V250W,Rear Drive Motor, 40N.m

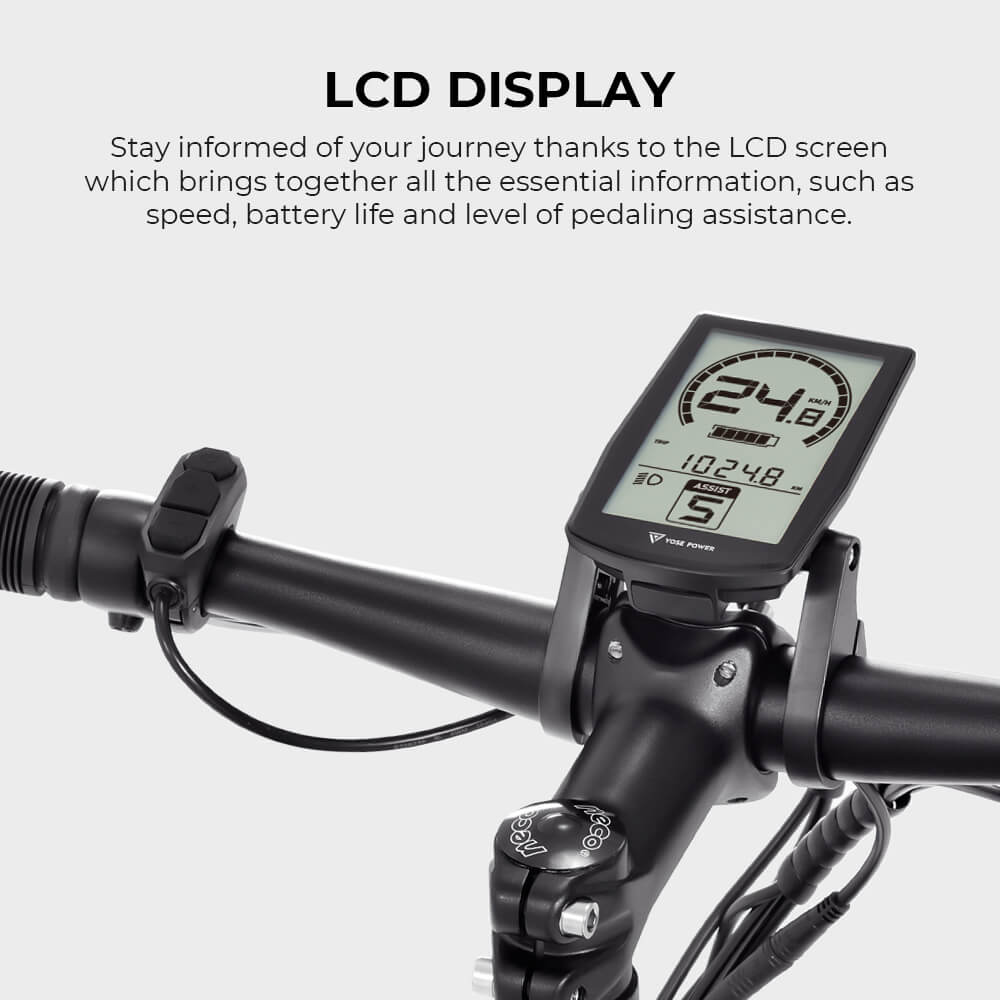

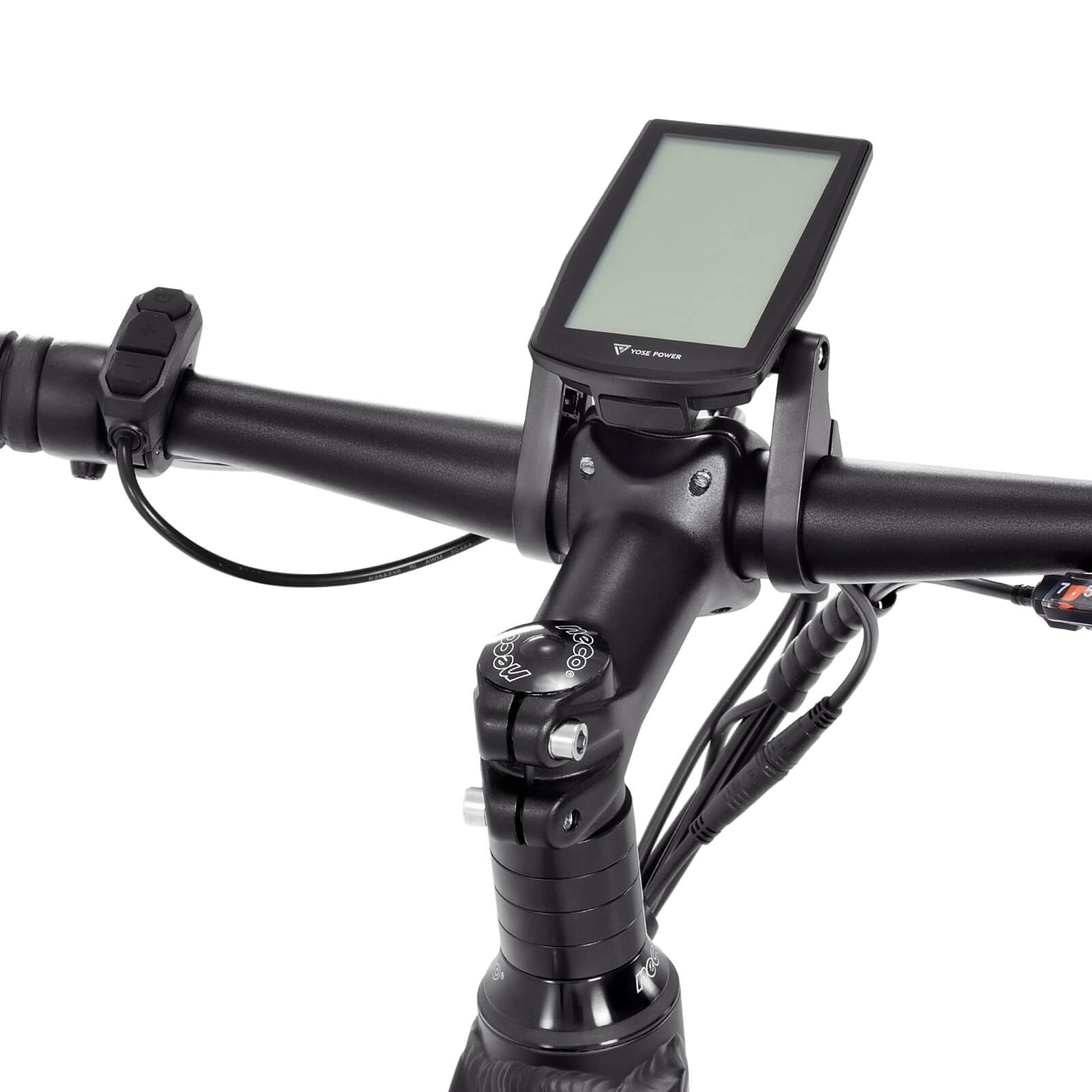

Display: YosePower,LCD, 5 levels, with USB port
Controller: JYT,36V15A, Sine wave

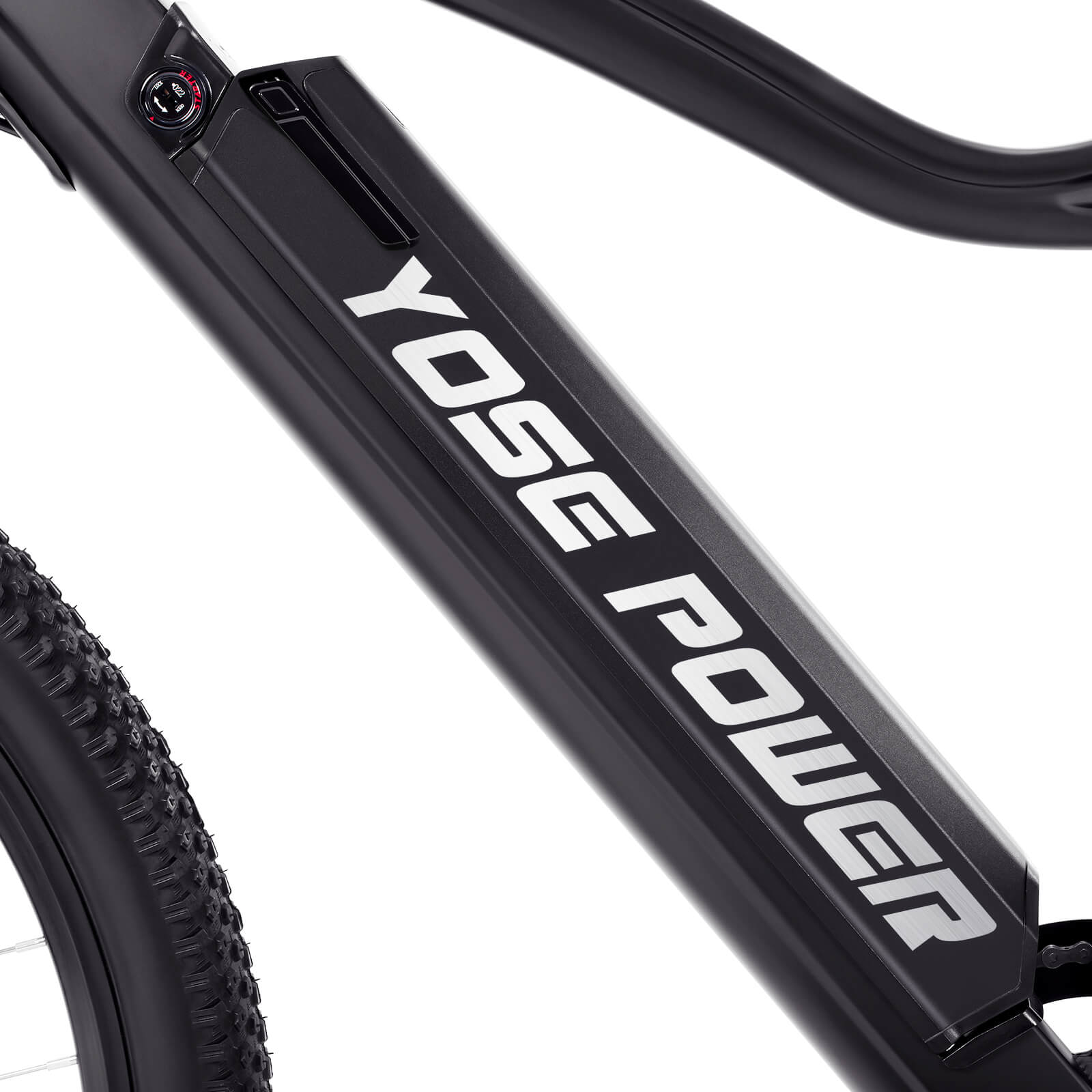

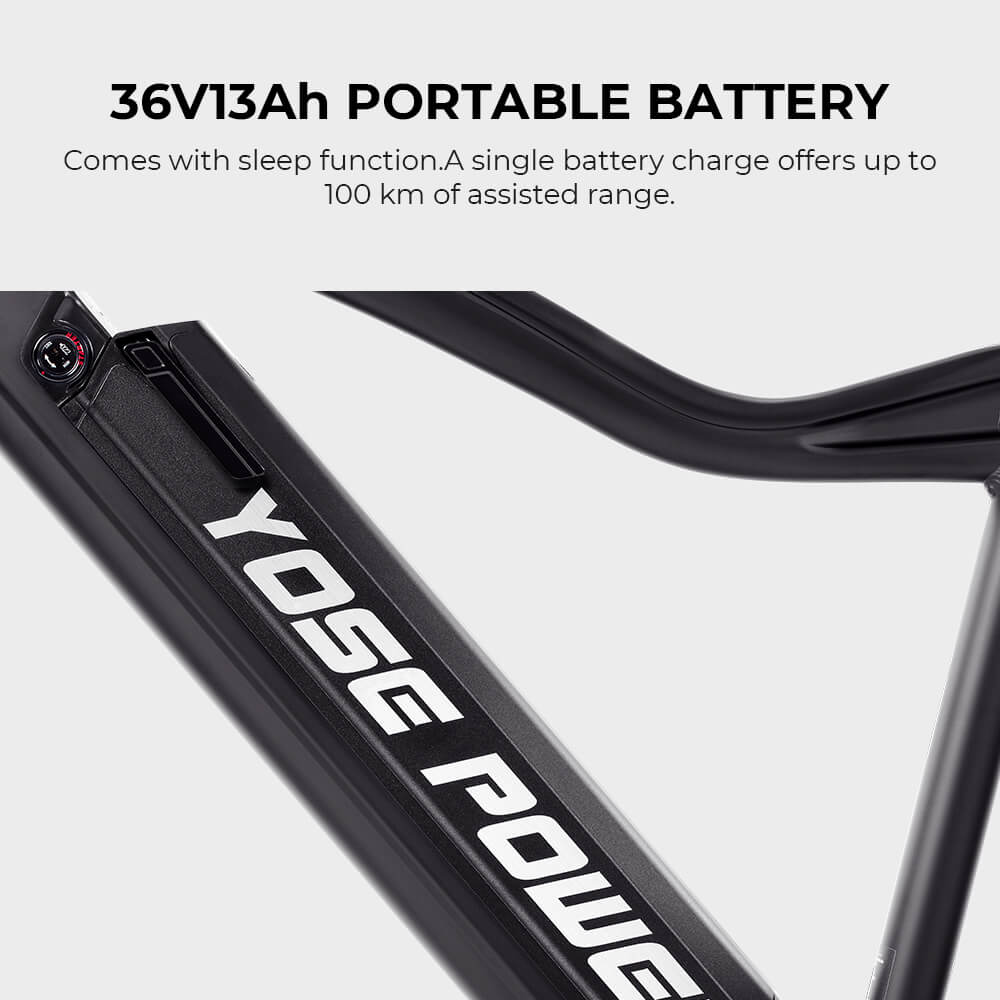

Battery: YosePower, 36V13Ah, 480Wh, with sleep function
Distance: 50-100km
Speed: Max 25Km/h

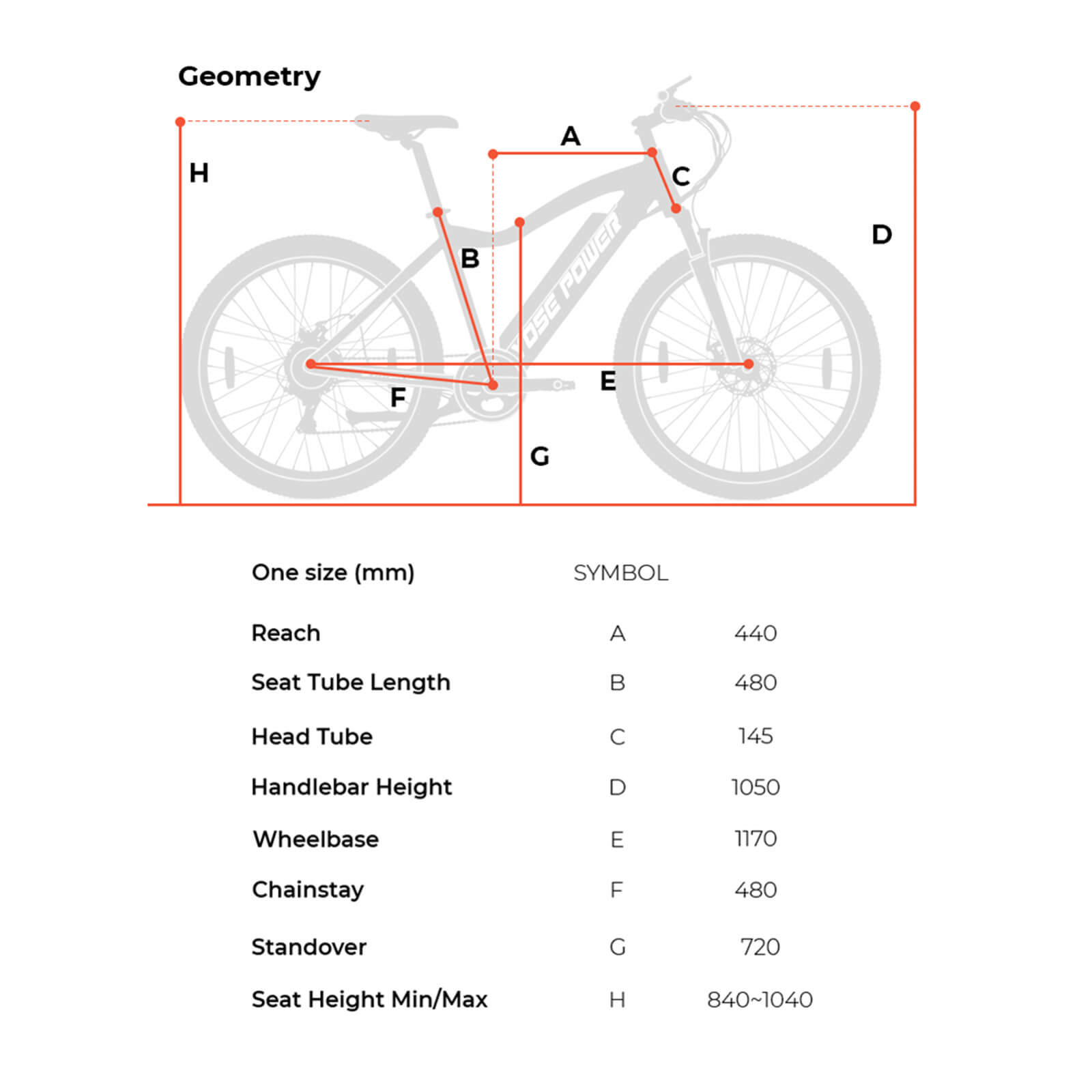

Frame: ALUMINIUM 6061, SIZE 27.5"

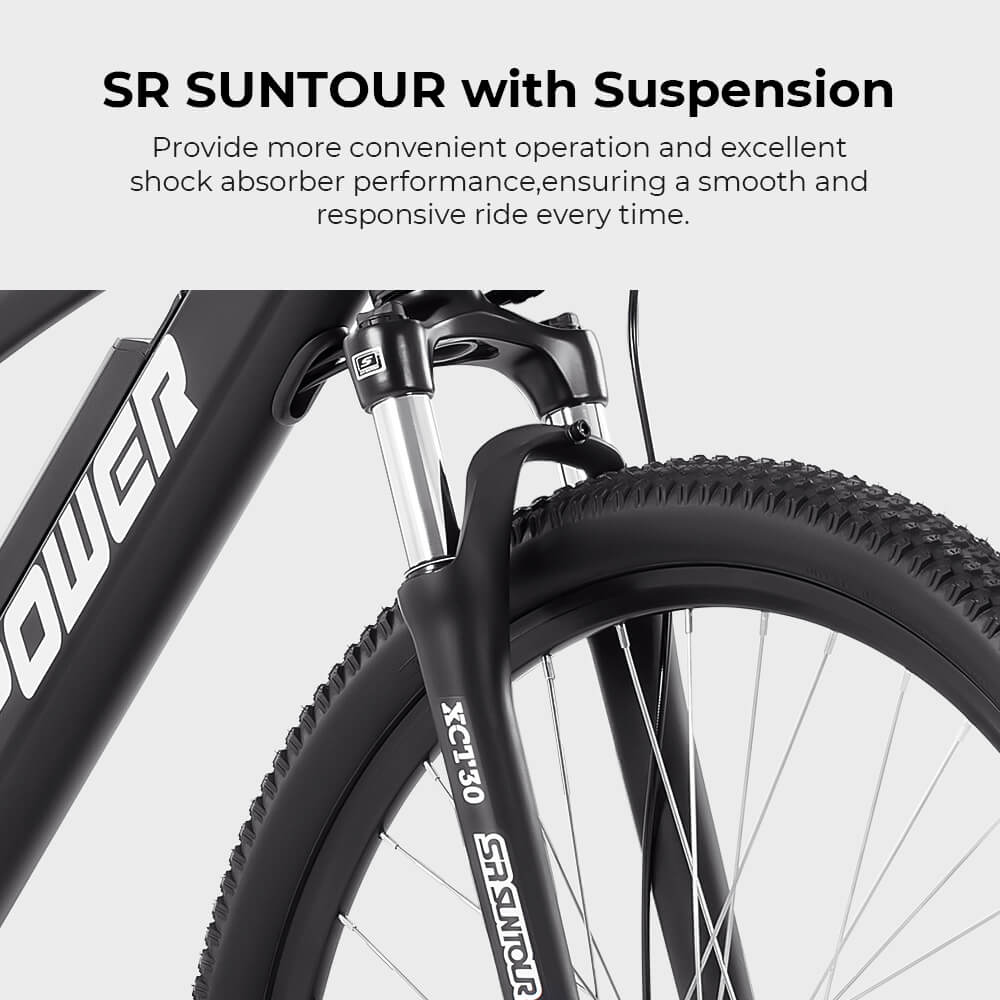

Front Fork: SR SUNTOUR, XCT, with Suspension(No lock function)
Color: Matte Black
Brake lever: WuXing, with intergrated sensor

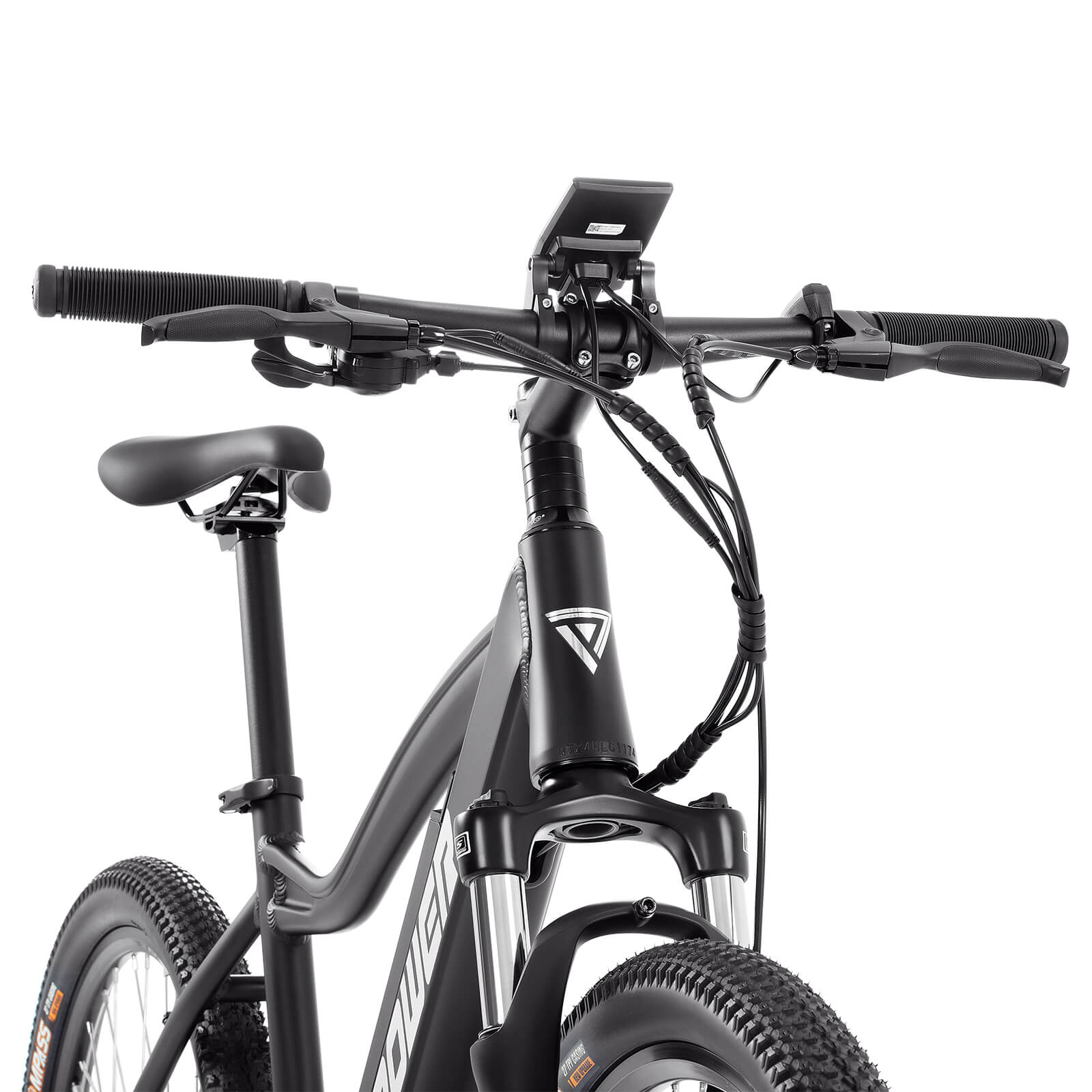

Handelbar: Aluminium, 620mm length
Saddle: YOSEPOWER, Black
Seat post: K.W.,Aluminium
Handle grip: Rubber,Black
HeadSet: NECO
BB Parts: NECO
Brake: Tektro, M280,disc brake
Brake Disc: Tektro, φ160mm
Tire: WANDA,27.5×2.1"
Shifter lever: Shimano, SL-M315
Freewheel: SHIMANO, 7-SPEED

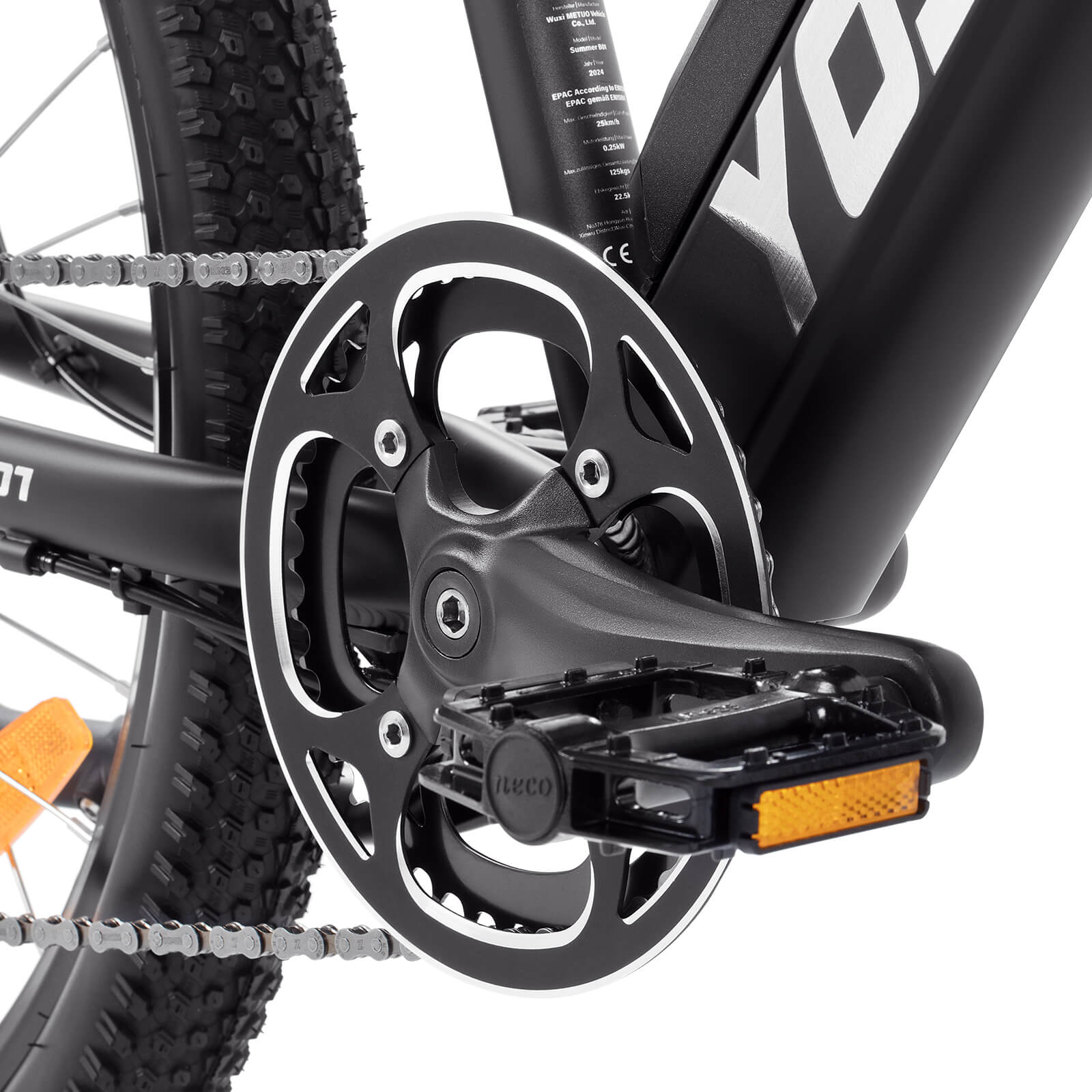

Crank: MPFWHEEL,42T, Aluminium
Rear Derailleur: Shimano, RD-TY200
Pedal: NECO
Chain: KMC
Net Weight: 22.5Kg
Battery weight: 3.2Kg
Max load: 125kg
2. Warranty
A. 24-Months Motor Warranty
The motor can be replaced with a new one within 24 months. Alternatively, the motor can be replaced if there is damage to the internal wiring, coil, or phase wiring, if the wires are burned out, the magnets are demagnetized or loose, the shaft is deformed, or if other quality issues occur that cannot be repaired.
B. 24-Months Motor Housing and Motor Bearing Warranty
Burned Hall sensor, loud bearing noise, or cracks.
C. 18-Months Lithium Battery Warranty
In the event of leakage or a capacity reduction below 60% within the first 12 months, an additional 6 months are applied for maintenance (excluding associated battery locks, battery housings, charging sockets, battery holders, and other accessories).
D. 24-Months Frame Warranty, Handlebars, Rear Frame, Front and Rear Wheel Hub, Fork, Stem, Seat Tube
Product-related performance defects cannot be repaired. Welding, desoldering, breakage, and deformation damage can be replaced. Handlebars, handlebars, and deformations can be replaced.
E. 24-months warranty on the controller, charger, cables, inverter, power management, switches, lock, indicators, horn, brake lever, switches, handlebar guards, shock absorbers, mounts, bottom bracket, crankset, disc brakes, and cut-off switch.
Performance defects cannot be repaired. Welding, desoldering, breakage, and deformation can be replaced. Shock absorption, oil leakage, and deformation can be replaced. Damage caused by human influences such as impacts and unauthorized modifications is not covered.
F. 24-months warranty on headlight mounts and LED bulbs.
Weld defects, unsoldered joints, cracks, twists, and paint chips will be replaced.
G. 6-months warranty on tires, tubes, valves, spokes, grips, fuses, charging sockets, and defective brake pads.
The tube is torn or defective. Production damage to the tire that is not due to wear and tear. Damage caused by human influences such as impacts and unauthorized modifications cannot be recognized.
3. Additional Information
* The E-bikes are sent from Germany. Only be shipped to Germany and France.
* The shipping to Germany is for free.
* The shipping to France costs extra 90EUR.
* The shipping takes 7-14 working days.
4. Copyright Statement
All the contents including words, pictures, and videos are originally made by YOSE POWER.
It is not allowed to plagiarize without permission or we keep the right to pursue legal responsibility.

Yose Power Mountain E-Bike with Speed Pedal Sensor Summer B01 BLK
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, within 24 hours on weekdays.
Shipping Information
We will ship within two working days after the order is placed.
Service Policy
All our after-sales policies are the same as those for Yose Power products sold on other sales platforms such as Amazon.
Return Information
If you received the wrong or damaged product, please contact us as soon as possible to get a free return label.
European Service Center
Our service center in Europe is in Germany. If you need official repair service, you can contact us to get the address.
FAQs
Please read our FAQs page to find out more.
Where the products are shipped from?
Batteries and conversion kits are shipped from German warehouses. Some accessories will be shipped from German or other countries according to stock.
How long to receive the product?
The product will be shipped within two working days after the order is placed. Batteries and kits will be received in Germany within 2-4 working days and in other countries within 3-5 working days.
How can I return the product?
We will provide different return plans according to different problems. If there is a problem that needs to be repaired or solved within the warranty period, we will provide a free return label.
How long will accessories for the product be available?
We will continue to provide accessories for products that have been in use for more than ten years.
Is Yose Power a professional manufacturer?
Yose Power is a professional developer and manufacturer of electric bicycle batteries, motors and electronic control systems. We have our own factory and warehouse.
