E-Bike Conversion Kit 36V 250W 24" Front Motor Kit

Yose PowerSKU: 2120100085G

Ship from: Germany
Price:
€239
Stock:
In stock

Description

Hub Motor 36V 250W 24" Front Motor Bicycle E-Bike Hub Conversion Kit DIY E-bike LCD Display

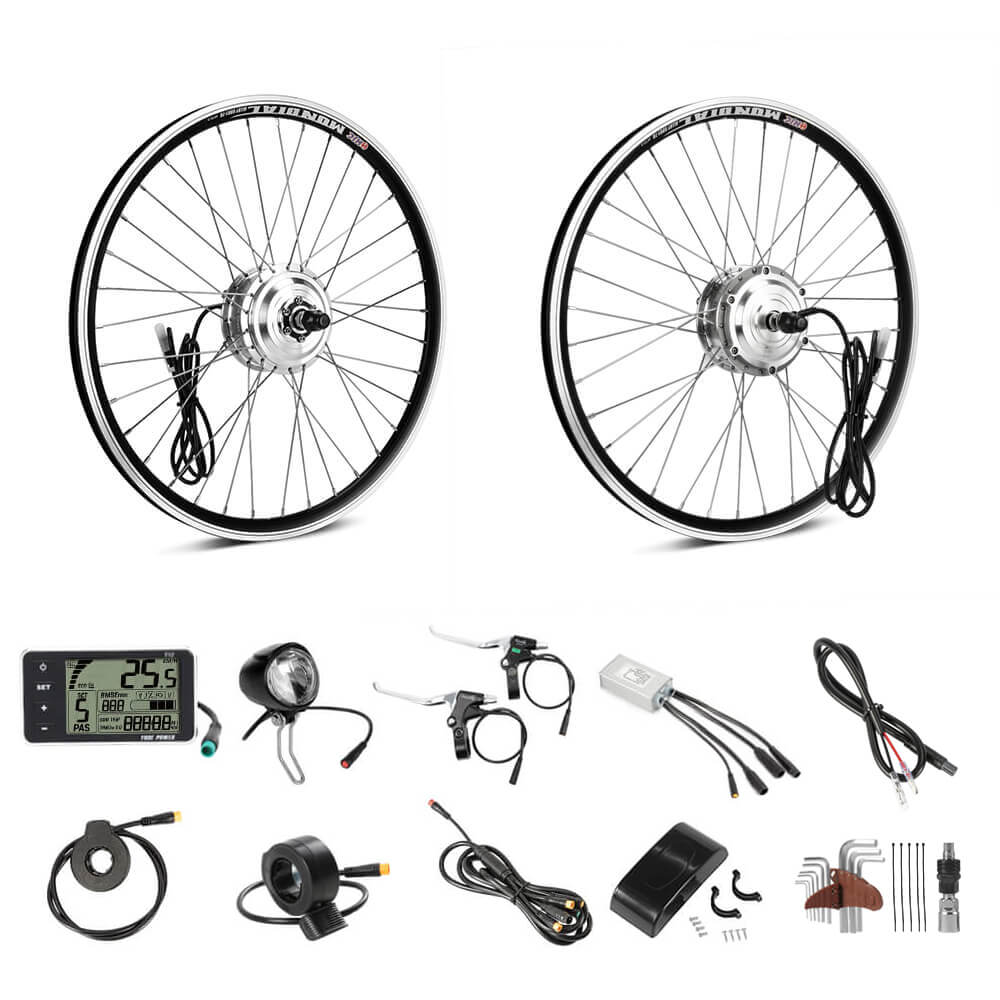

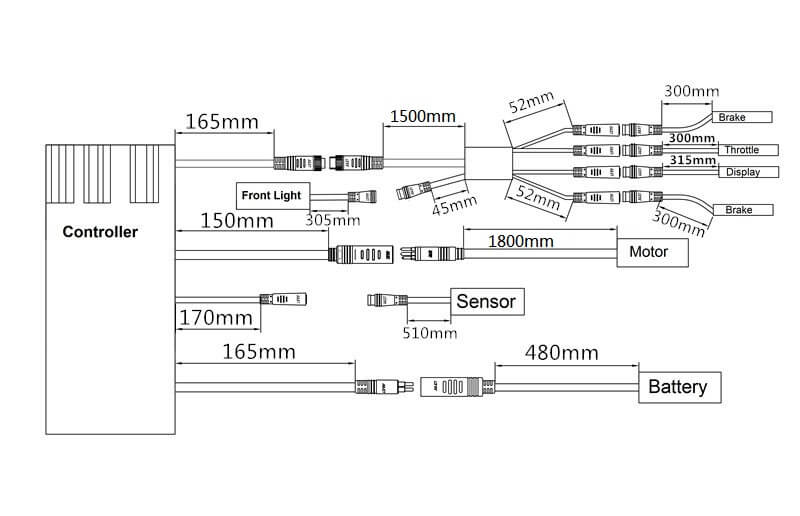

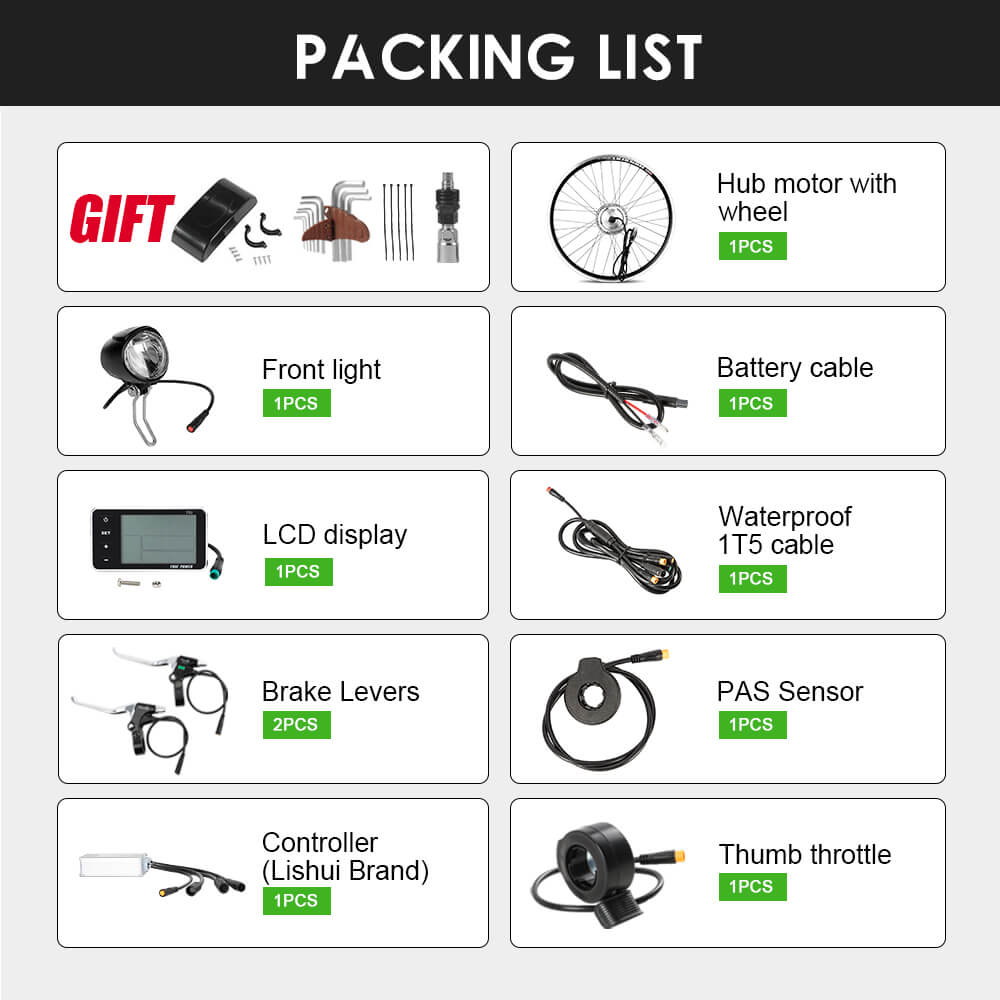

1.Technical Data and Packing list

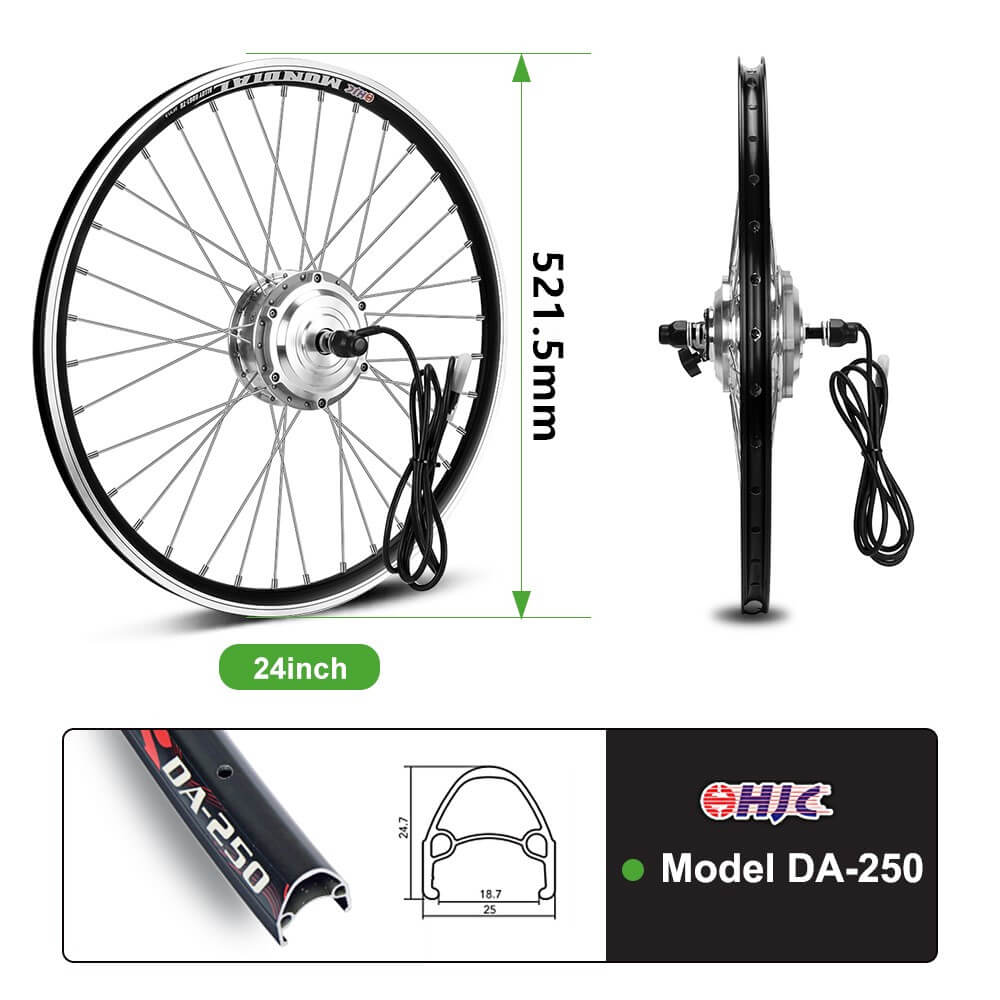

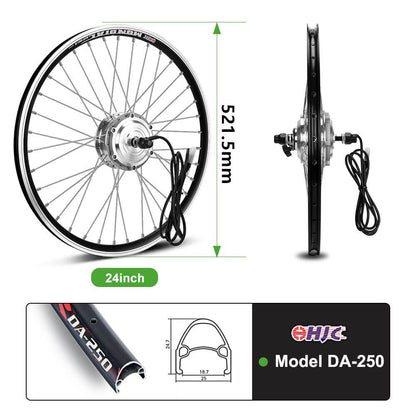

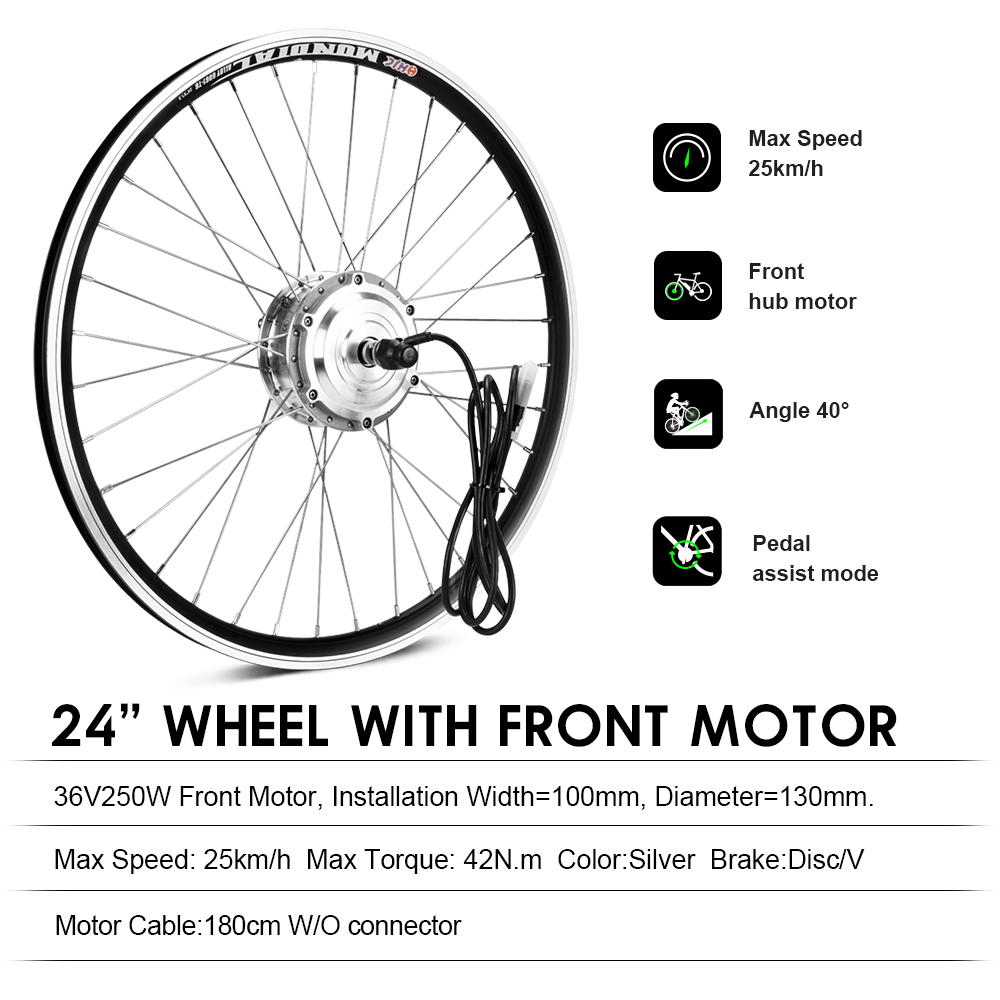

Front motor with 24" wheel x 1:

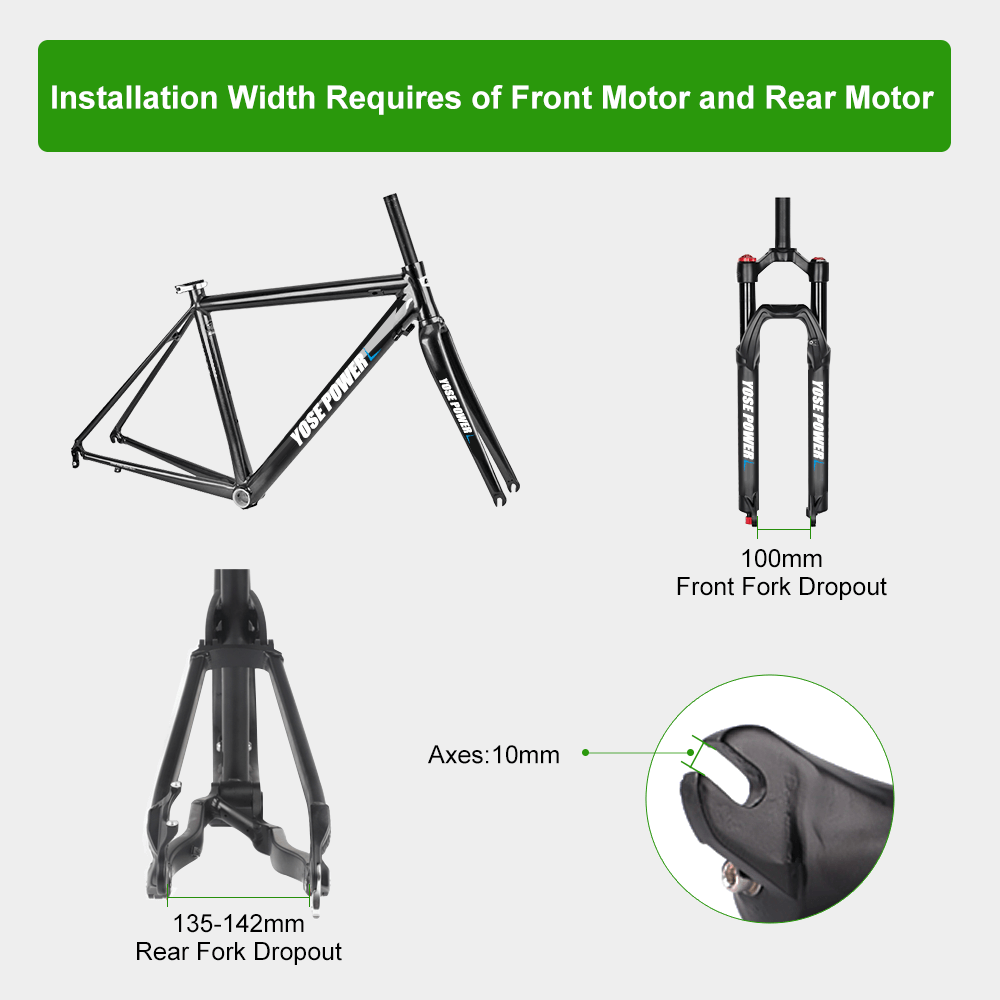

36V 250W , installation width: 100mm, diameter: 133mm
13G spokes with double wall wheel
Max speed(by throttle): 25km/h
Max torque: 40N.m
Motor color: silver
Motor cable: 180cm
Controller(Lishui Brand) x 1:
Low voltage protection: 31V
Rated current: 7A
Max current: 15A
Size: L*W*H=95x50x28mm
Waterproof connectors: motor, battery, PAS sensor, 5 into 1 cable

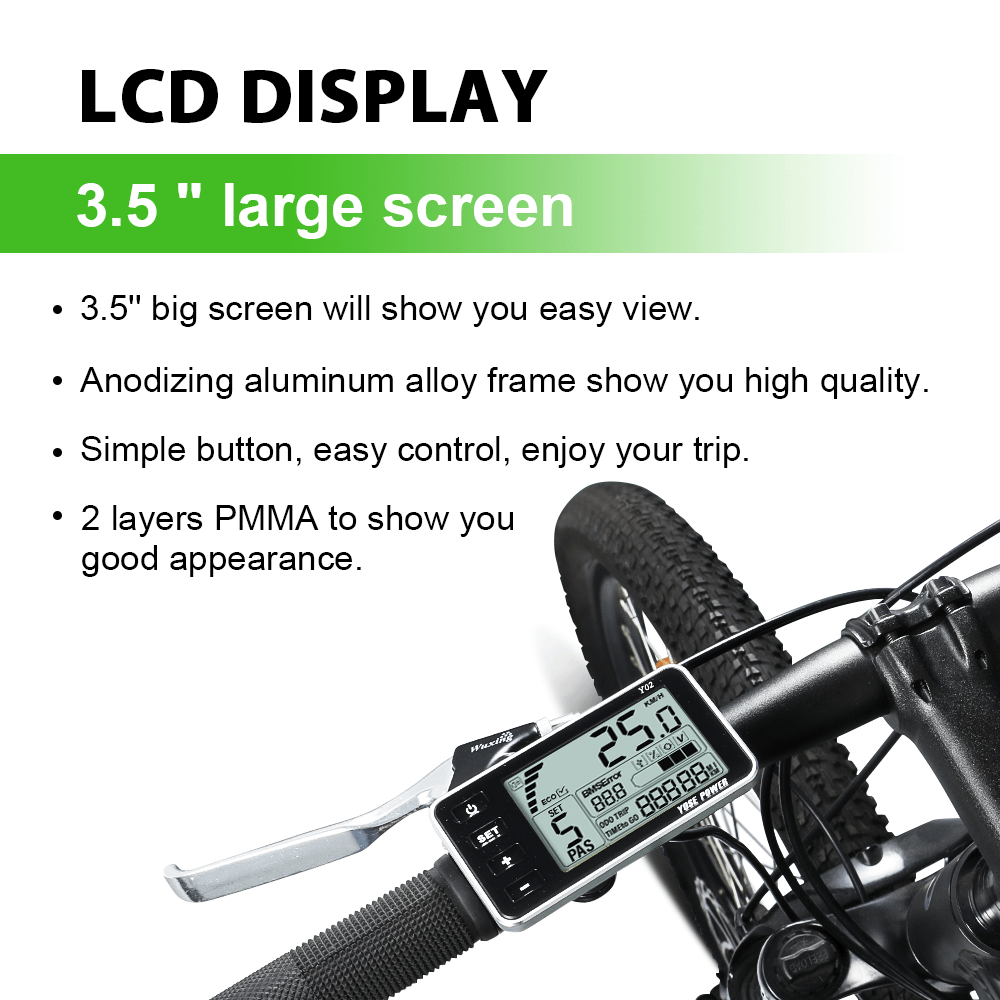

LCD Display(DASHI C500) x 1:
3.5" LCD screen display with backlight
Cable: 31.5cm
5 assist levels, and 6km/h traction with holding down button

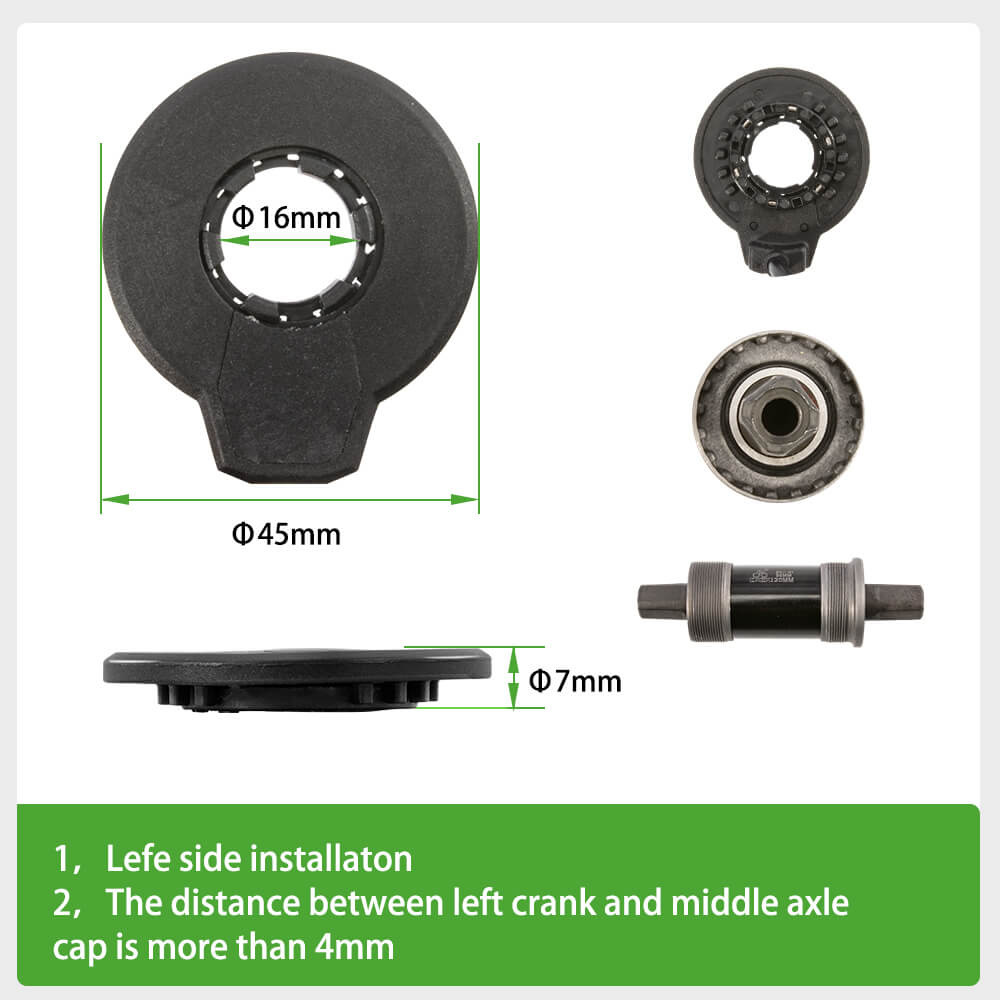

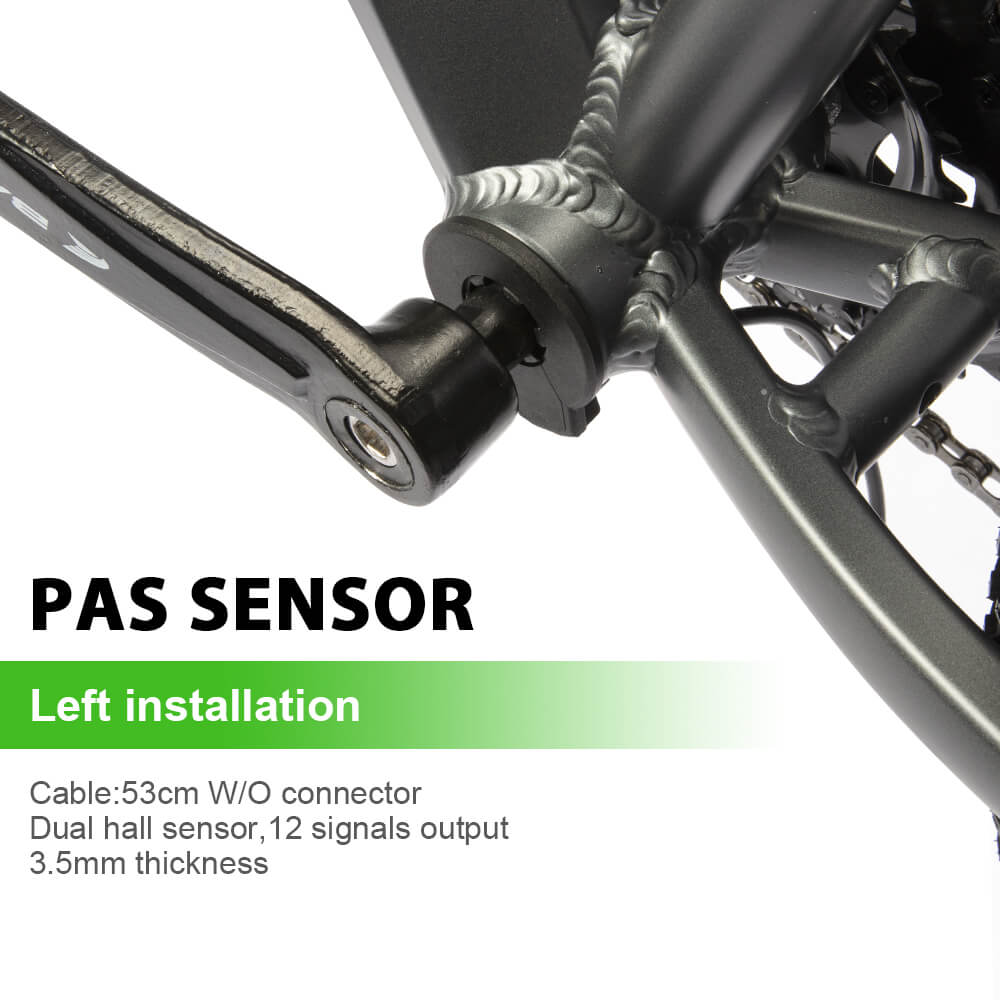

PAS Sensor(Left installation) x 1:
Cable: 52cm,Dual Hall Sensor, 12 signals output
Brake Levers(Wuxing Brand) x 2:
Cable: 30cm
Thumb Throttle(Wuxing Brand) x 1:
Cable: 30cm
5 into 1 Cable x 1:
Cable: 150cm
Front Light(LED Light) x 1:
Power: 36V2W 30Lux, Cable: 30.5cm
Battery Cable x 1:
To connect battery and motor
Free Gift x 1:
Controller Box and Conversion Tools.

2. Warm tips
*The conversion kits in German warehouse are not shipped to UK. And the all products in UK warehouse are not shipped to EU.
*The original pedal sensor in kit isn't fit for Hollowtech II and Octalink. The brake levers are not fit for bike with hydraulic brake.
If your bike has these parts, you can buy these sensors to fit our conversion kit.
https://yosepower.com/products/hollowtech-ii-sensor
https://yosepower.com/products/hydraulic-brake-sensor
*Please read the installation instructions carefully before you start, this instruction will help you to install the product effectively.
*36V battery(Li, lead-acid, NiMH battery etc.) is compatible with this motor.
*IMPORTANT NOTE:Please set the maximum driving speed of the e-bike according to the local traffic laws to prevent the safety risks caused by excessive speed!
*If you have any question, please contact us.

3. Important notice for recycling of used batteries& motor kits
*As a professional seller, we strictly abide by local laws and regulations to ensure product's quality, transportation and storage safety, environmental protection.
*According to electronic consumer goods recycling regulations, batteries and motor kits  must not be disposed of with household ordinary waste.
*Consumers are obliged to dispose of the used electronic goods to the professional recycling agency in local for proper disposal. They must not be arbitrarily throw into the trash. Please protect the environment!

4. Copyright Statement
*All the contents including words, pictures and videos are original made by YOSE POWER.
*It is not allowed to plagiarize without permission or we keep the right to pursue legal responsibility.

Customer Reviews

Based on 16 reviews
100%
(16)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
s
sylvain ROSSIGNOL
kit 250w 24 pouces

Ce kit m'a permis de remplacer une roue et un contrôleur de moteur, l'ancien contrôleur d'une autre marque ayant eu un câble de phase cramé. ce kit est bien à part les poignées de frein qui semble fragile. Il serait intéressant de donner plus d'informations pour le paramétrage du contrôleur notamment sur les SP5-1 ou 6, pour la sensibilité du réglage du PAS et pour le courant maximale. il serait préférable de programmer l'afficheur suivant les conditions les plus restrictives des différents pays: 25km-h et 6km pour l'accélérateur. Sinon l'ensemble marche à merveille, j'ai seulement du changer le capteur de pas pour l'adapter à la transmission par cardan.

F
Felix R.
Great and sophisticated conversion kit!

I installed the set in a Yuba Kombi Cargobike and was positively impressed of how easy the installation process went on! The 30 nm-motor is strong enough for the flat area in northern Germany and two 9 year-old kids in the back plus 20 kg of shopping are no felt weight any longer. For stiffer regions a stronger middle motor might be a recommendation for this kind of bike, but the fact that the front motor (in contrast to a middle motor) even slows down the wear and tear of my chain drive, is totally convincing to me.
Combined with a 10 Ah-battery by Yose Power I directly rode a distance of 70-80 kilometres in mixed electrical support modes. The Eco-Mode is mostly to weak for my kind of riding, so I often quickly switch to 3 to 4. It would be great if the display remembered the last setting or rather allowed to set a standard setting after turning on...
The setting of the controller went quite easy: After a little bit experimentation with the speed sensor sensibility and slow start settings (I set it to zero, because I was constantly in the need of braking after the motor pulled me forward), I quickly found my very own personal setting which I don't want to change any longer.
Great also that the motor rolls without any friction when it is turned off. That allows me to ride even further...

A
Attila
Very good conversion kit

I converted two of my Tern folding bikes with the 24 inch kit. The older Castro bike needed a life hack because had a 74mm fork, but fortunately it is compatible with the Node bike fork. So both of them are equiped with the powerful Yose front hub motor. The set is really good quality and easy to install. The cables for me were not too long (because for the folding bike I needed special cable route lengths). I recommend this brand.

A
Ashley Berry
very difficult to install, wires too long

it is not easy this kit

M
Matthias Eder
24“Frontmotor

Hallo, alles bestens.
Wenn man die Kabel noch kürzen könnte wäre es perfekt.
Lg Matthias
