Hub Motor 36V 250W 20" Front Motor Bicycle E-Bike Hub Conversion Kit DIY E-bike LCD Display

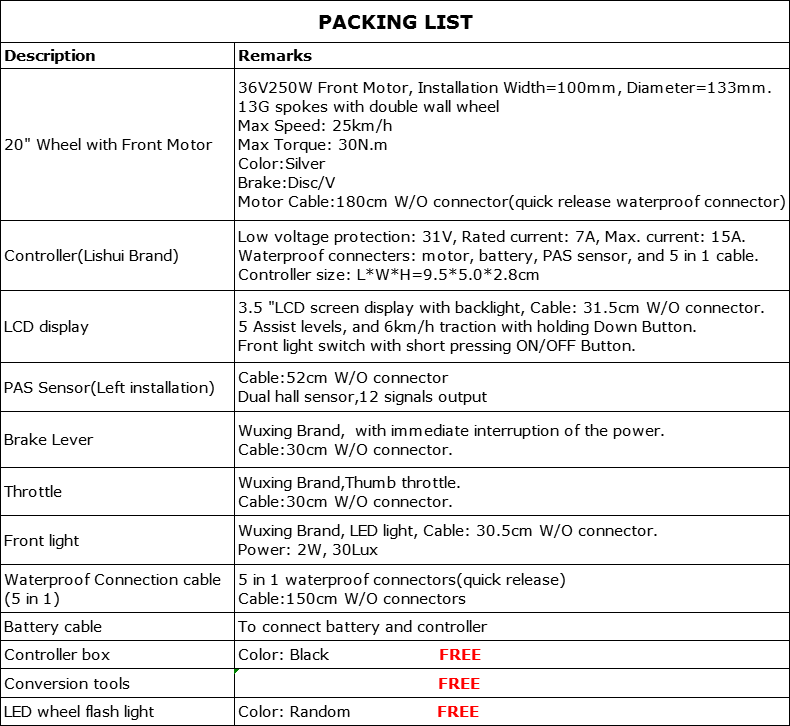

1.Technical Data and Packing list
Front motor with 20" wheel x 1:
36V 250W , installation width: 100mm, diameter: 133mm
13G spokes with double wall wheel
Max speed(by throttle): 25km/h
Max torque: 30N.m
Color: black / silver
Motor cable: 180cm w/o connector
Controller(Lishui Brand) x 1:
Low voltage protection: 31V
Rated current: 7A
Max current: 15A
Waterproof connectors: motor, battery, PAS sensor, 5 into 1 cable
LCD Display(DASHI C500) x 1:
3.5" LCD screen display with backlight
Cable: 31.5cm w/o connector
5 assist levels, and 6km/h traction with holding down button
PAS Sensor(Left installation) x 1:
Cable: 52cm w/o connector,Dual Hall Sensor, 12 signals output
Brake Levers(Wuxing Brand) x 2:
Cable: 30cm w/o connector
Thumb Throttle(Wuxing Brand) x 1:
Cable: 30cm w/o connector
5 into 1 Cable x 1:
Cable: 150cm w/o connector
Front Light(LED Light) x 1:
Power: 36V2W 30Lux, Cable: 30.5cm w/o connector
Battery Cable x 1:
To connect battery and motor
Free Gift x 1:
Controller Box and Conversion Tools.
2. Warm tips
*This conversion kit can be sent to UK now.
*The original pedal sensor in kit isn't fit for Hollowtech II and Octalink. The brake levers are not fit for bike with hydraulic brake.
If your bike has these parts, you can buy these sensors to fit our conversion kit.
*Please read the installation instructions carefully before you start, this instruction will help you to install the product effectively.
*36V battery(Li, lead-acid, NiMH battery etc.) is compatible with this motor.
*IMPORTANT NOTE：Please set the maximum driving speed of the e-bike according to the local traffic laws to prevent the safety risks caused by excessive speed!
*If you have any question, please contact us.
3. Important notice for recycling of used batteries& motor kits
*As a professional seller, we strictly abide by local laws and regulations to ensure product's quality, transportation and storage safety, environmental protection.
*According to electronic consumer goods recycling regulations, batteries and motor kits must not be disposed of with household ordinary waste.
*Consumers are obliged to dispose of the used electronic goods to the professional recycling agency in local for proper disposal. They must not be arbitrarily throw into the trash. Please protect the environment!
4. Copyright Statement
*All the contents including words, pictures and videos are original made by YOSE POWER.
*It is not allowed to plagiarize without permission or we keep the right to pursue legal responsibility.
