E-Bike Conversion Kit 36V 350W 26" Rear Motor Kit for Cassette with 36V 13Ah Battery and Charger
Pairs well with

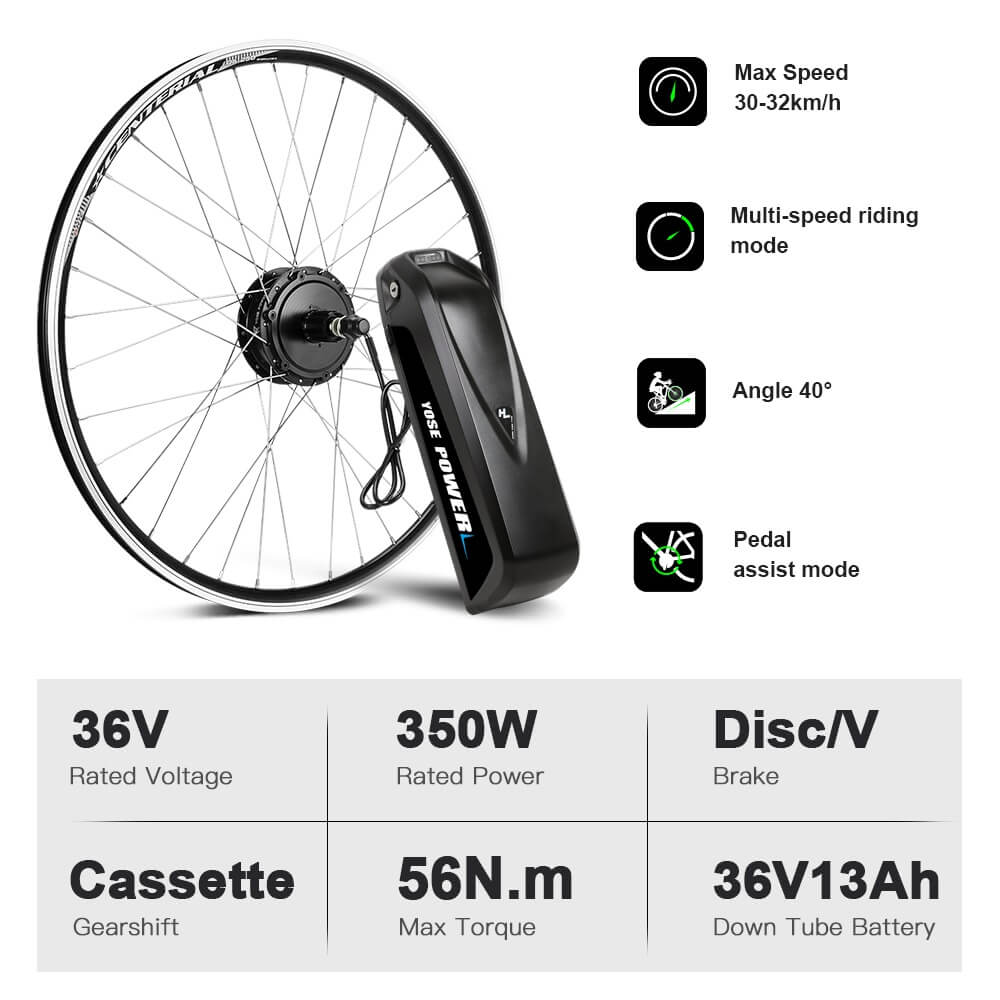

1. Technical Description
1) 36V 350W brushless geared rear cassette motor, suitable with 8/9/10 speed cassette ;

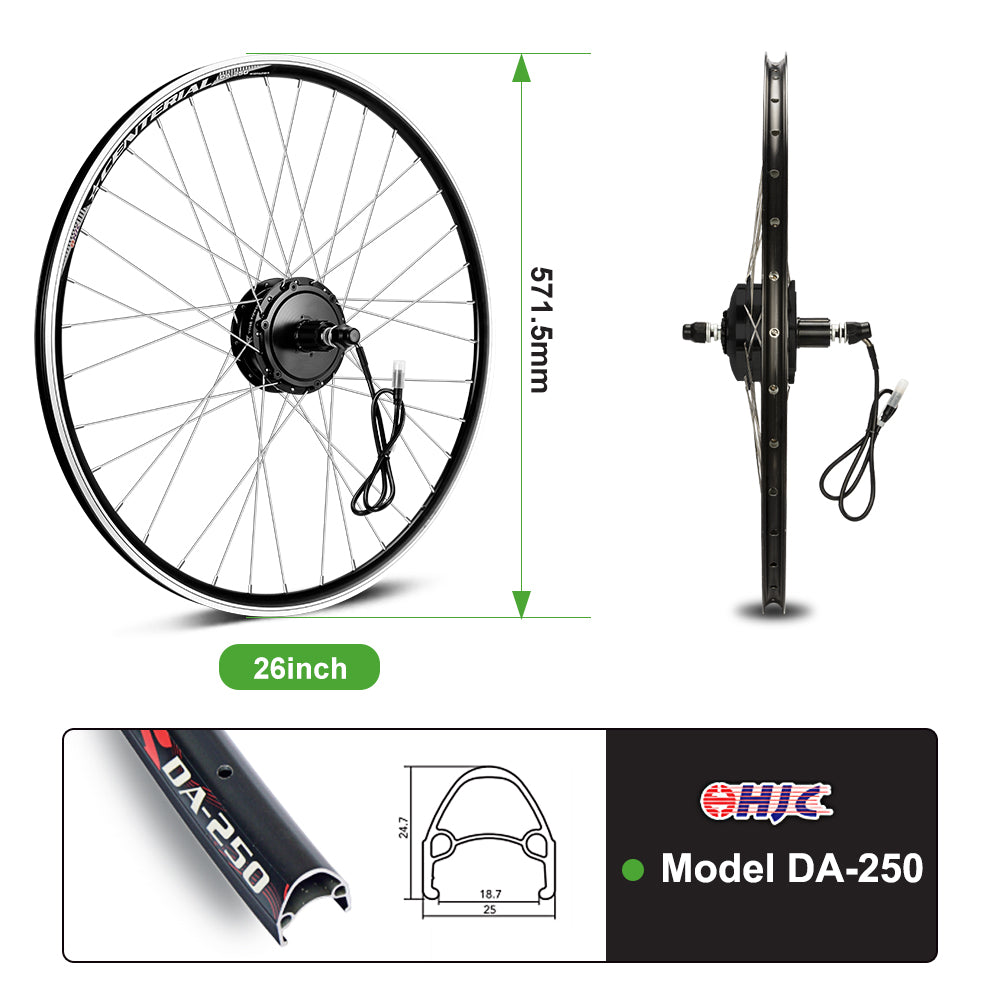

2) comes with 26" double wall rim and 12G silver spokes, fit for 26" bikes;

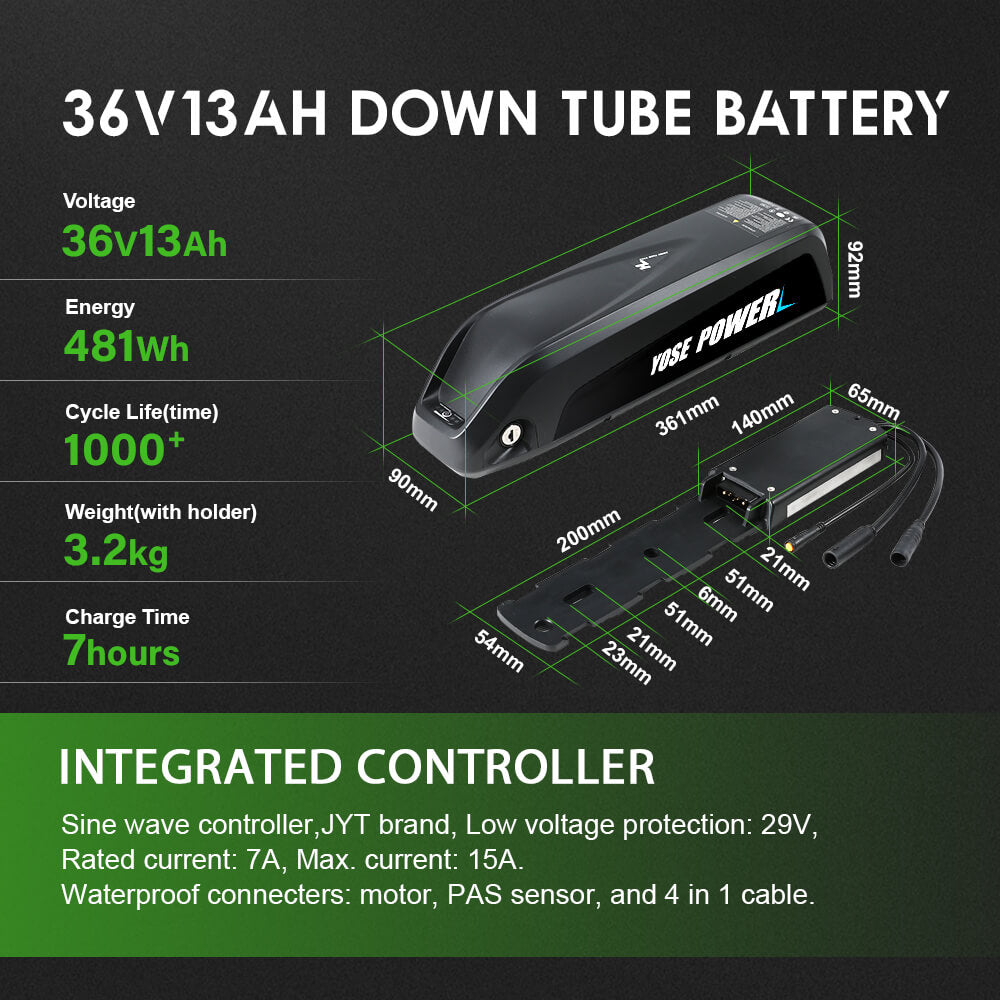

3) 36V 13Ah downtube battery, the range is about 40-50km, comes with 42V 2A charger;
4) the max speed of motor is 30-32km/h;
5) the max torque of motor is 56N.m;
6) compatible with V-brake and disc brake;

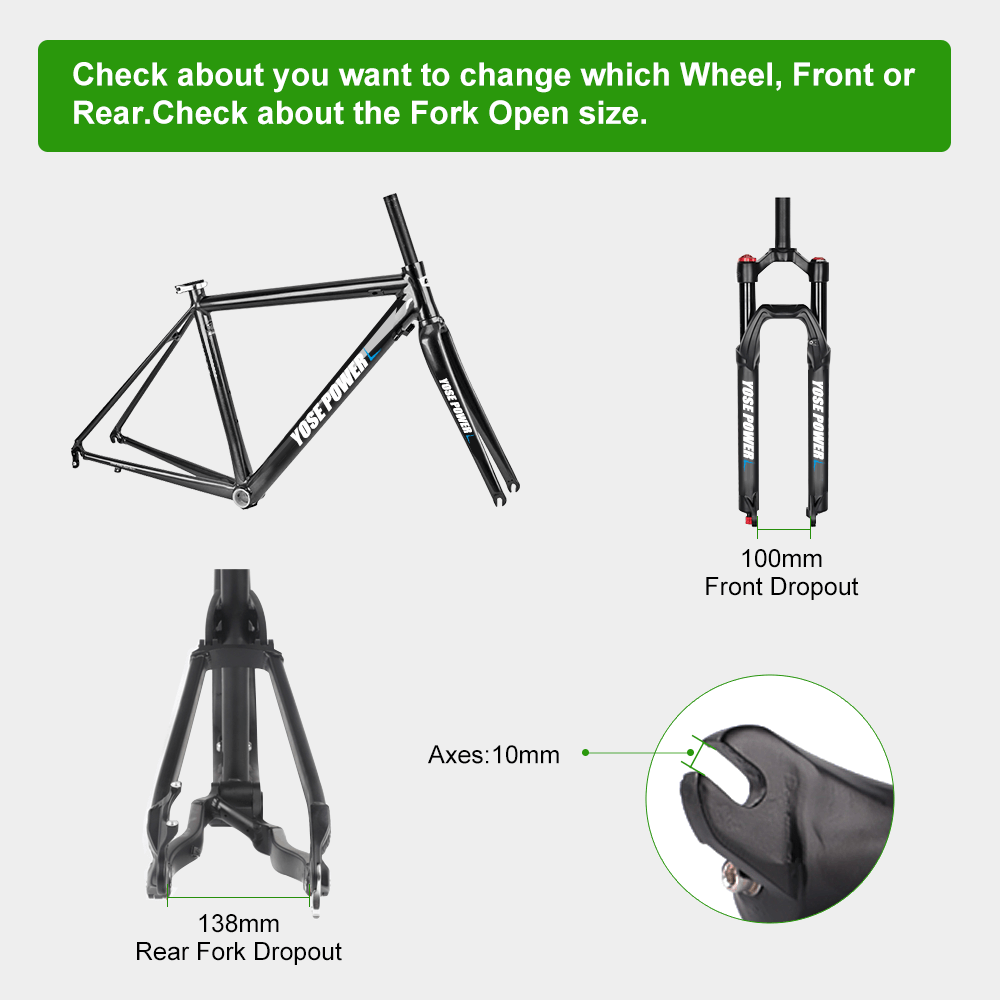

7) requested installation width between forks is 138mm;

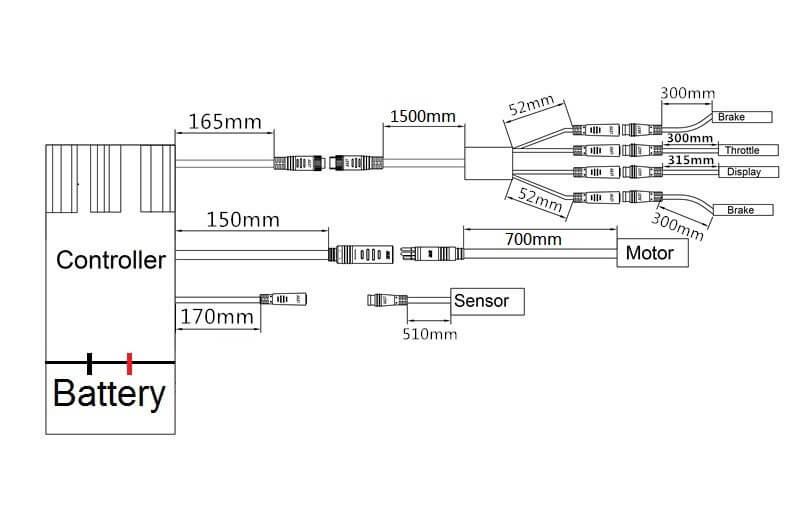

8) 36V 18A Lishui integrated controller, connected to motor, PAS sensor and 4into1 cable;

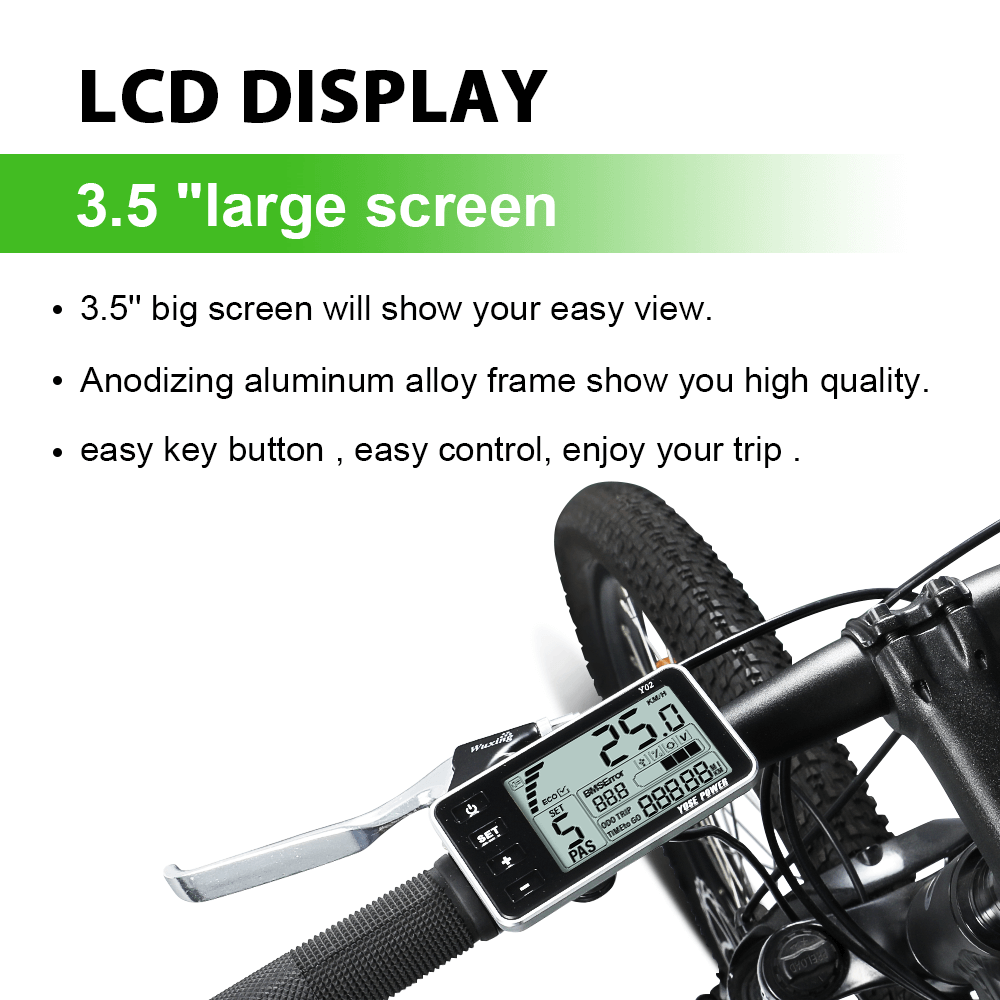

9) 36V Dashi C500 LCD display with backlight, 5 assist levels;

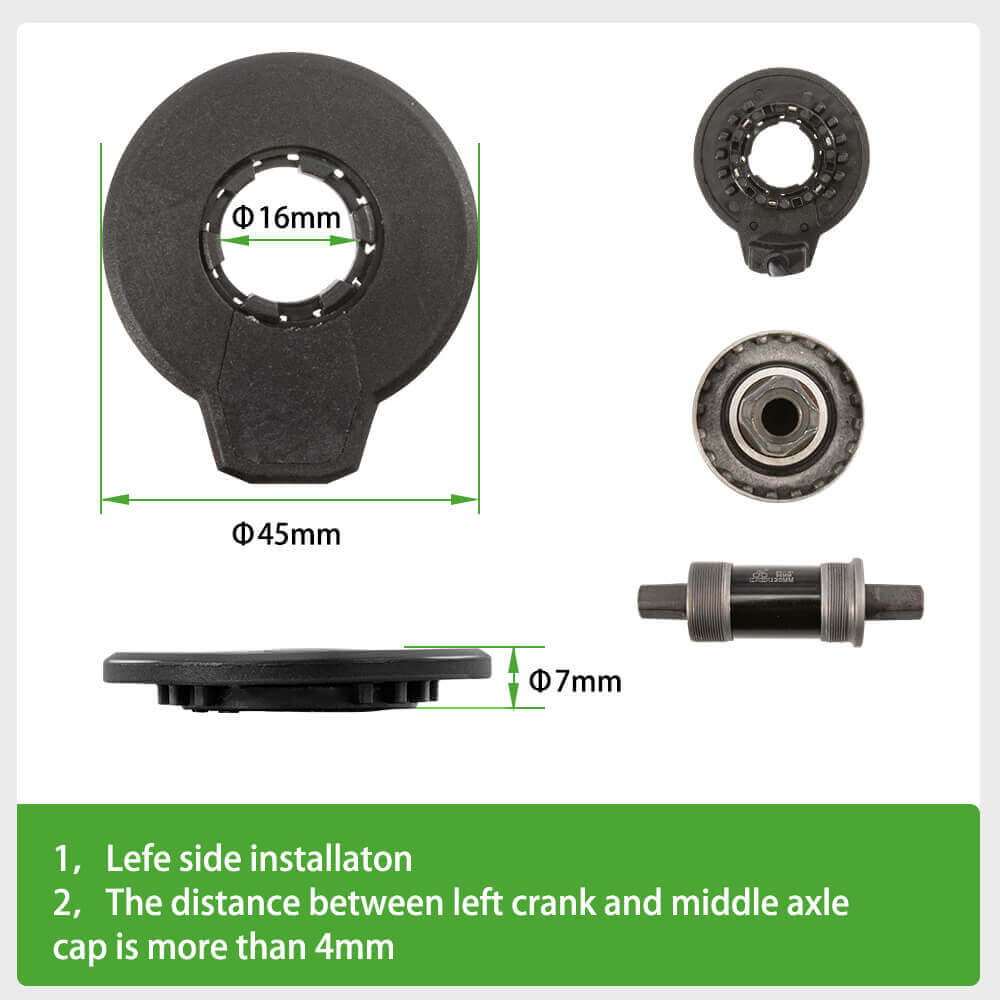

10) PAS sensor for left side of bottom bracket, double hall sensor, 12 signals output;

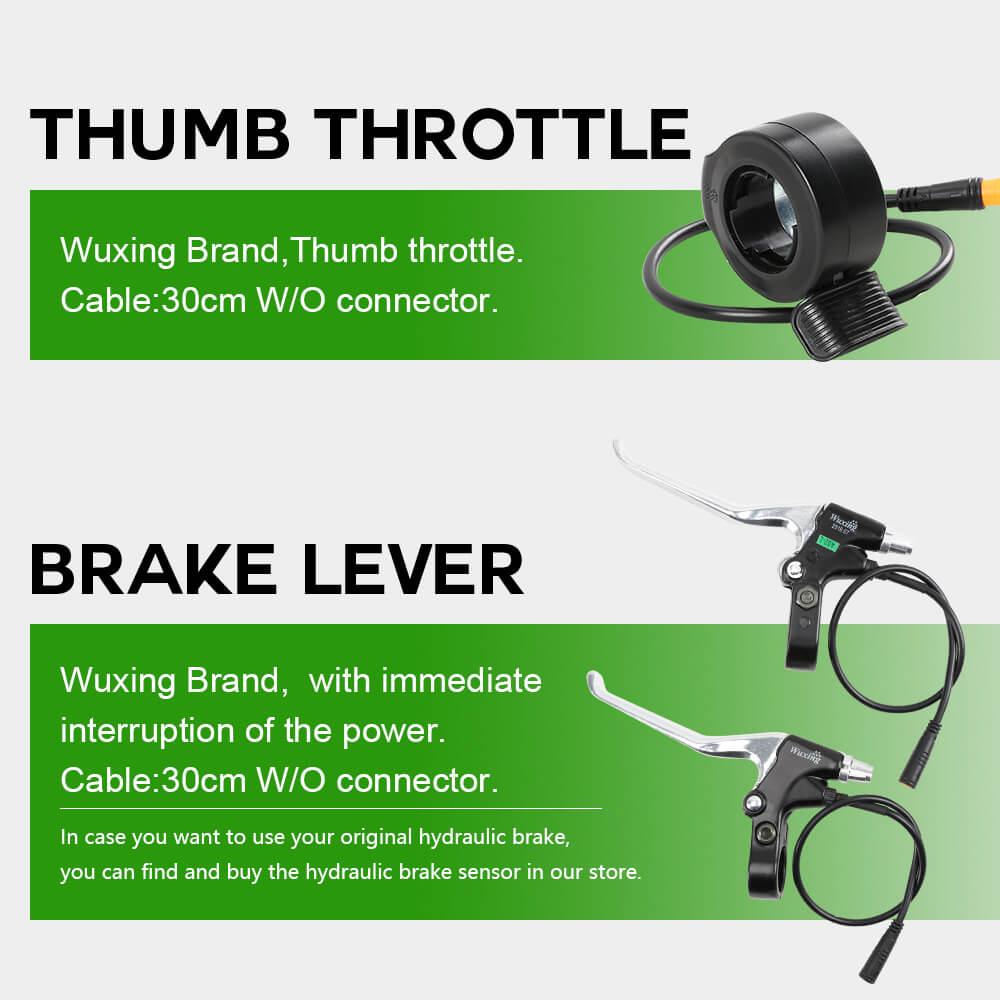

11) thumb throttle;
12) mechanical brake levers;

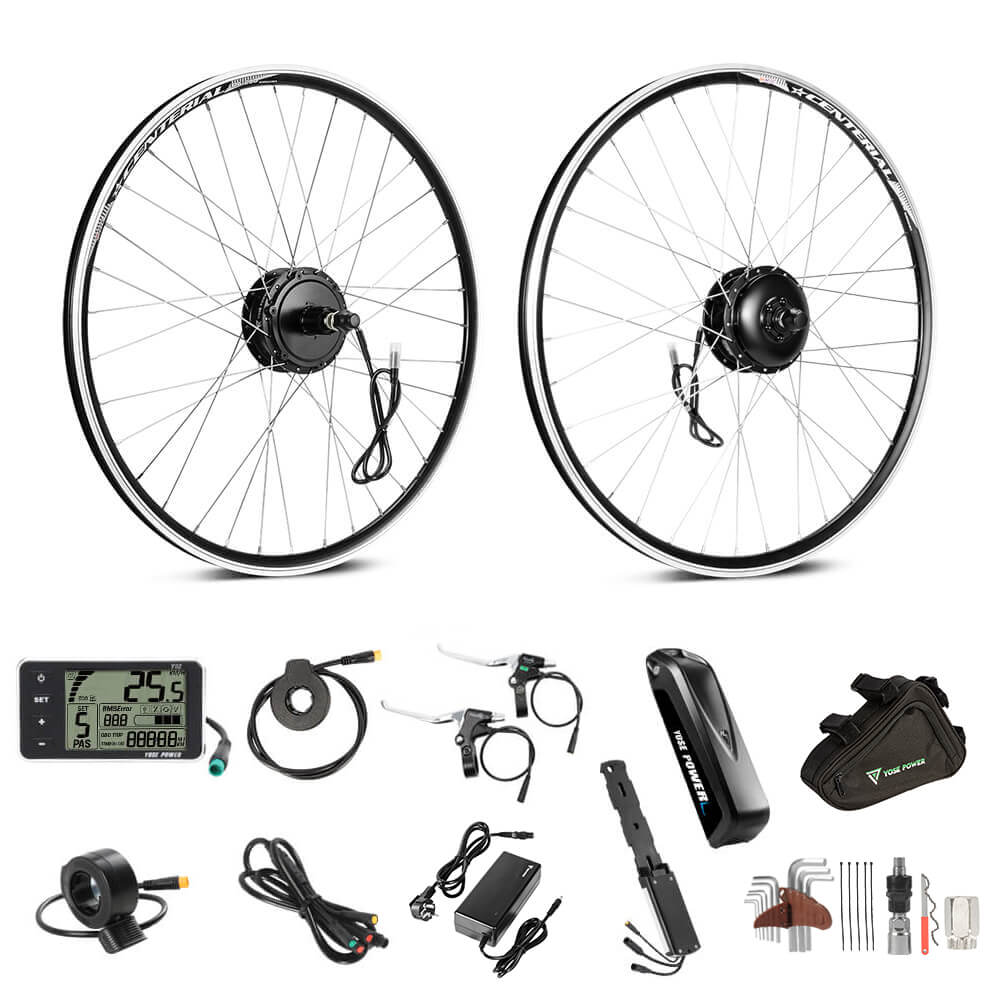

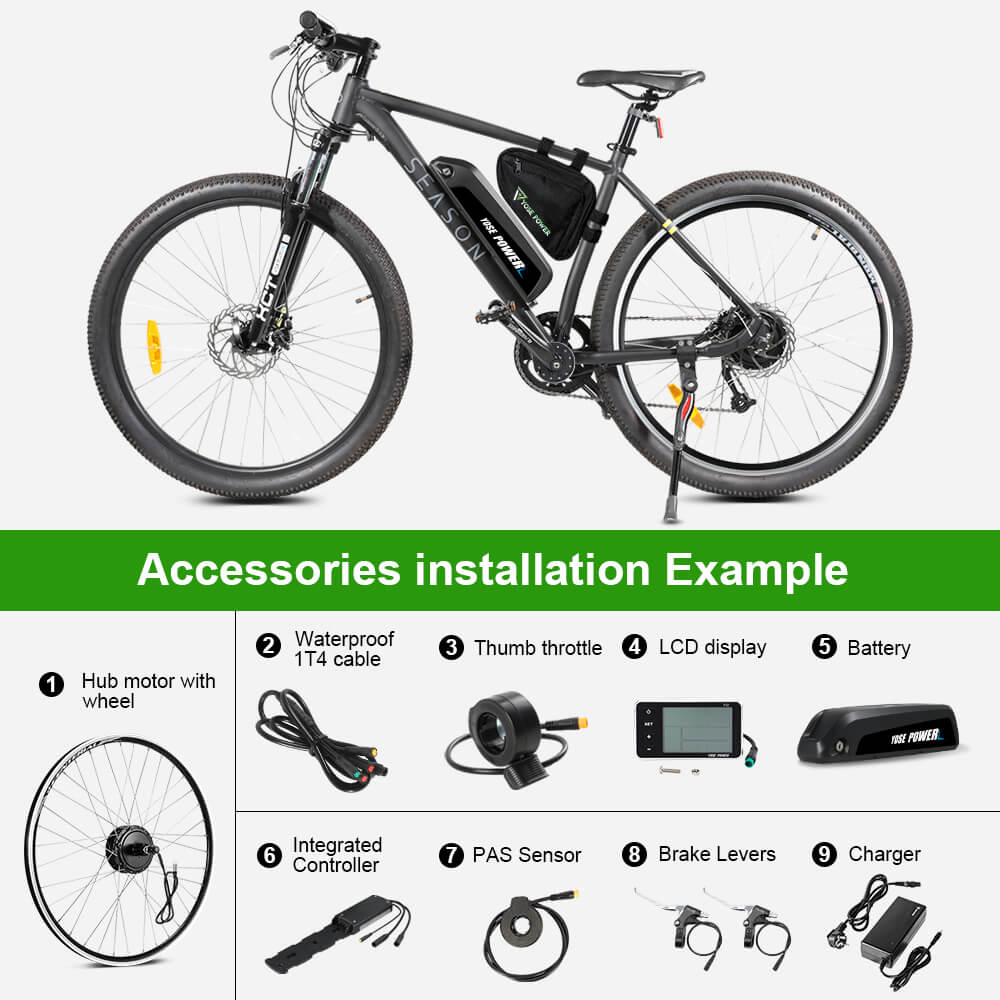

2. Packing List
1 x rear cassette motor with 26" rim
1 x downtube battery
1 x charger
1 x integrated controller
1 x LCD display
1 x PAS sensor
1 x thumb throttle
1 x 4into1 cable
2 x brake levers
1 x controller bag
1 x free tools
3. Additional Information
* The warranty of motor and battery is 18 months. Other parts in kit have warranty of 12 months.
* The shipping takes 2-4 working days in Germany. In other countries, the shipping takes 4-8 working days.
* The max speed of motor is 30-32km/h. It can be set on display, but the speed limit can't be canceled.
* The pedal sensor in kit doesn't fit for Hollowtech II and Octalink. You will need this pedal sensor: https://yosepower.com/products/hollowtech-ii-sensor
* The brake levers in kit are not suitable for hydraulic brake. You will need these brake sensors: https://yosepower.com/products/hydraulic-brake-sensor
* These batteries can be bought separately as replacement:
36V13Ah/14.5Ah: https://yosepower.com/products/36v-13ah-14-5ah-down-tube-battery
36V18Ah: https://yosepower.com/products/36v-18ah-e-bike-li-ion-battery-hailong-mix-with-5-gold-plated-round-plug-replace-for-yose-power-13ah-hailong-battery
4. Important Notice for Recycling of Used Batteries & Motor Kits
* As a professional seller, we strictly abide by local laws and regulations to ensure product's quality, transportation and storage safety, environmental protection.
* According to electronic consumer goods recycling regulations, batteries and motor kits must not be disposed of with household ordinary waste.
* Consumers are obliged to dispose of the used electronic goods to the professional recycling agency in local for proper disposal. They must not be arbitrarily throw into the trash. Please protect the environment!
5. Copyright Statement
* All the contents including words, pictures and videos are original made by YOSE POWER.
* It is not allowed to plagiarize without permission or we keep the right to pursue legal responsibility.
E-Bike Conversion Kit 36V 350W 26" Rear Motor Kit for Cassette with 36V 13Ah Battery and Charger
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, within 24 hours on weekdays.
Shipping Information
We will ship within two working days after the order is placed.
Service Policy
All our after-sales policies are the same as those for Yose Power products sold on other sales platforms such as Amazon.
Return Information
If you received the wrong or damaged product, please contact us as soon as possible to get a free return label.
European Service Center
Our service center in Europe is in Germany. If you need official repair service, you can contact us to get the address.
Customer Reviews
E-Bike Conversion Kit 36V 350W 26" Rear Motor Kit for Cassette with 36V 13Ah Battery and Charger
Au top 👍
C'è tutto quel che serve, dai componenti principali alle rondelle per evitare che le viti che fissano il supporto batteria lo rovinino alle fascette per fissare i cavi.
Anche tutti gli attrezzi necessari sono presenti. Ho avuto difficoltà nel montaggio del sensore di pedalata in quanto non c'era lo spazio necessario, ma è bastato diminuire con un frullino lo spessore della pedivella ed il montaggio è stato possibile.
Per la installazione il manuale cartaceo aiuta poco ma su YouTube si trovano filmati con il procedimento completo.
Occorre una discreta manualità ed il gioco è fatto.
Una cosa non ho capito, quando si parla di limite di velocità "preimpostato", quale sia, 25 km/h?
Thank you for feedback. If there is any question, please send email to service@yosepower.com. Thanks.
Grazie per il feedback. Per qualsiasi domanda, inviare un'e-mail a service@yosepower.com. Grazie.
Fiquei muito satisfeito com este Kit Yose Power, tenho agora uma fantástica bicicleta, muito obrigado, existe muita qualidade neste Kit
facile a installer, cables un peu long, esthetique correcte, un vieux vtt et son proprietaire qui ont retrover une nouvelle jenesse. je recommande+++
Good morning, well, the truth is that the experience with you has been very positive, fast shipping, everything well packaged, etc. And the whole package, even without being able to test it in 2 days, seems fantastic to me. As for the assembly, almost everything was very good and easy, and I say almost everything because I did find it extremely difficult, and watching before and after videos, I don't understand why... for me, the pedaling sensor was incredibly difficult to put on, since it went in very, very hard, so much so that it took me almost longer to put the sensor on than to put on everything else. I'm not exaggerating, I spent two long hours trying to put it in and there was no way to get it to go in completely, it went in very hard, so much so that I thought it was going to break and I had to make myself a tool to make sure that all the force was even and that it went in straight with force and even then it didn't go in all the way because I didn't want to risk it breaking anymore, this did leave me a little dislocated because in the videos it looks very easy, I checked that everything was ok, I even sanded a little to ensure smoothness and nothing. For the rest, as I said, everything is perfect, let's hope that the sensor doesn't end up breaking from being so hard and keep testing it for autonomy. Thank you very much for everything. I think it's a very good value for money.
Thank you for your feedback. Maybe this original pedal sensor in kit is not suitable for your bike. You can contact us to send some photos about bottom bracket. We are glad to recommend you more compatible sensor.
Merci pour votre SAV rapide
Fairly easy to install with the instructions manual and the tools provided.
You do need to have just a little bit of mechanic skills/ understanding of working with bikes - but it’s very straight forward to install
E-Bike Conversion Kit 36V 350W 26" Rear Motor Kit for Cassette with 36V 13Ah Battery and Charger
FAQs
Please read our FAQs page to find out more.
Where the products are shipped from？
Batteries and conversion kits are shipped from German warehouses. Some accessories will be shipped from German or other countries according to stock.
How long to receive the product?
The product will be shipped within two working days after the order is placed. Batteries and kits will be received in Germany within 2-4 working days and in other countries within 3-5 working days.
How can I return the product?
We will provide different return plans according to different problems. If there is a problem that needs to be repaired or solved within the warranty period, we will provide a free return label.
How long will accessories for the product be available?
We will continue to provide accessories for products that have been in use for more than ten years.
Is Yose Power a professional manufacturer?
Yose Power is a professional developer and manufacturer of electric bicycle batteries, motors and electronic control systems. We have our own factory and warehouse.
