E-Bike Conversion Kit 36V 250W 28"(700C) Front Motor Kit with HL1 36V 18Ah Battery Hub Motor DIY

1. Technical Description

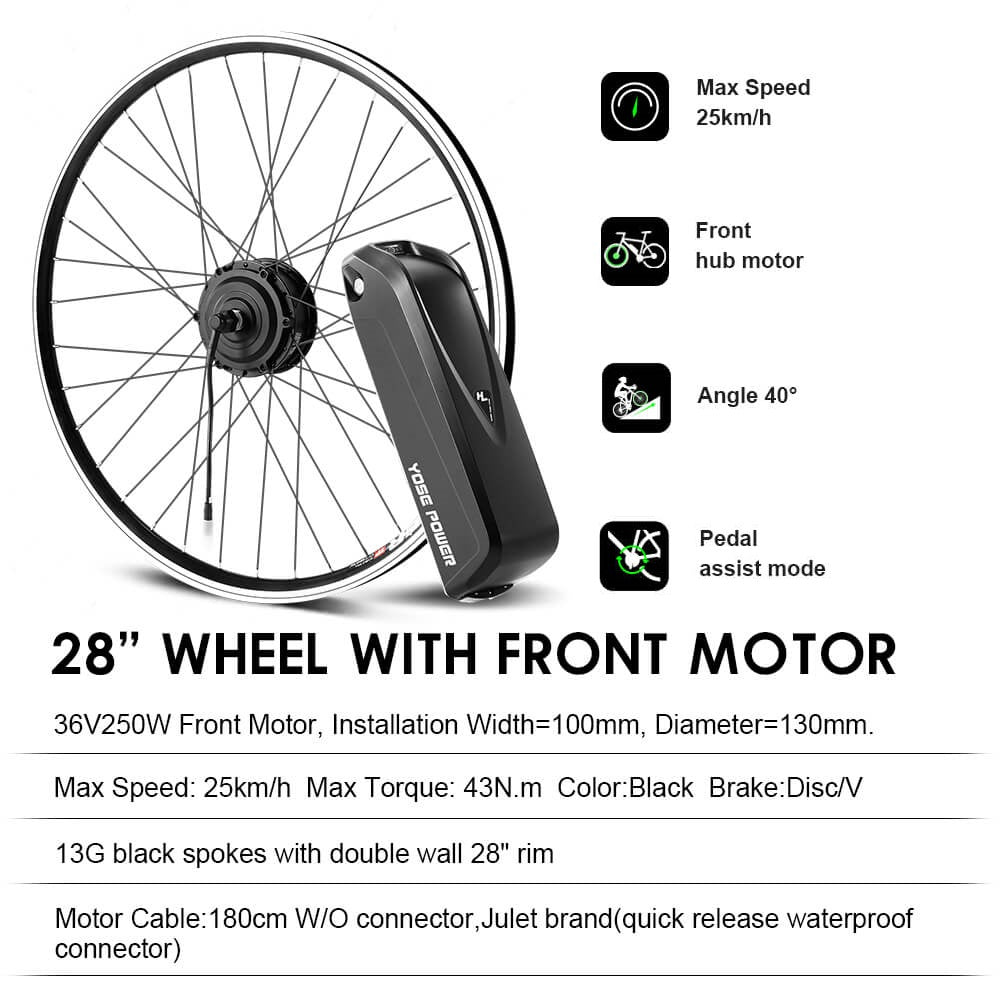

1) 36V 250W brushless geared front motor, stable and powerful;

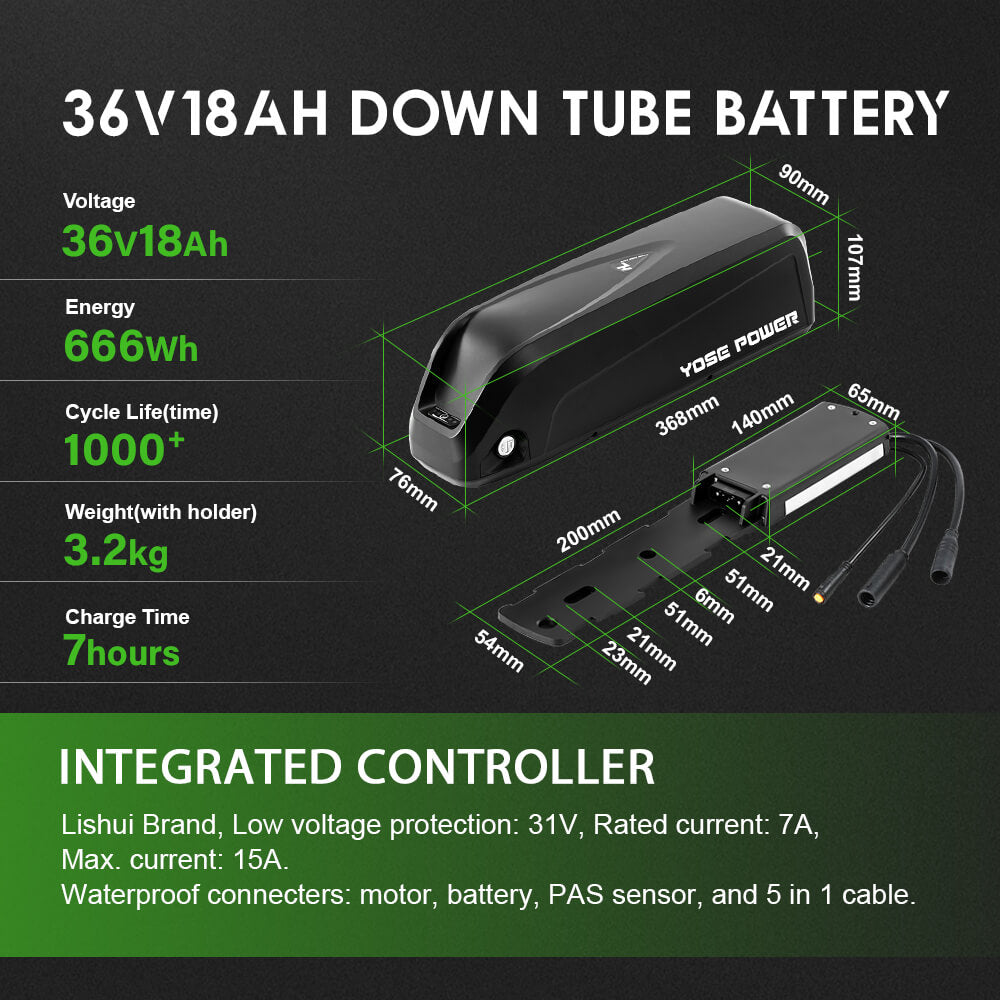

2) 36V 18Ah down tube battery, the range is 60-65km, comes with 42V 3A charger;

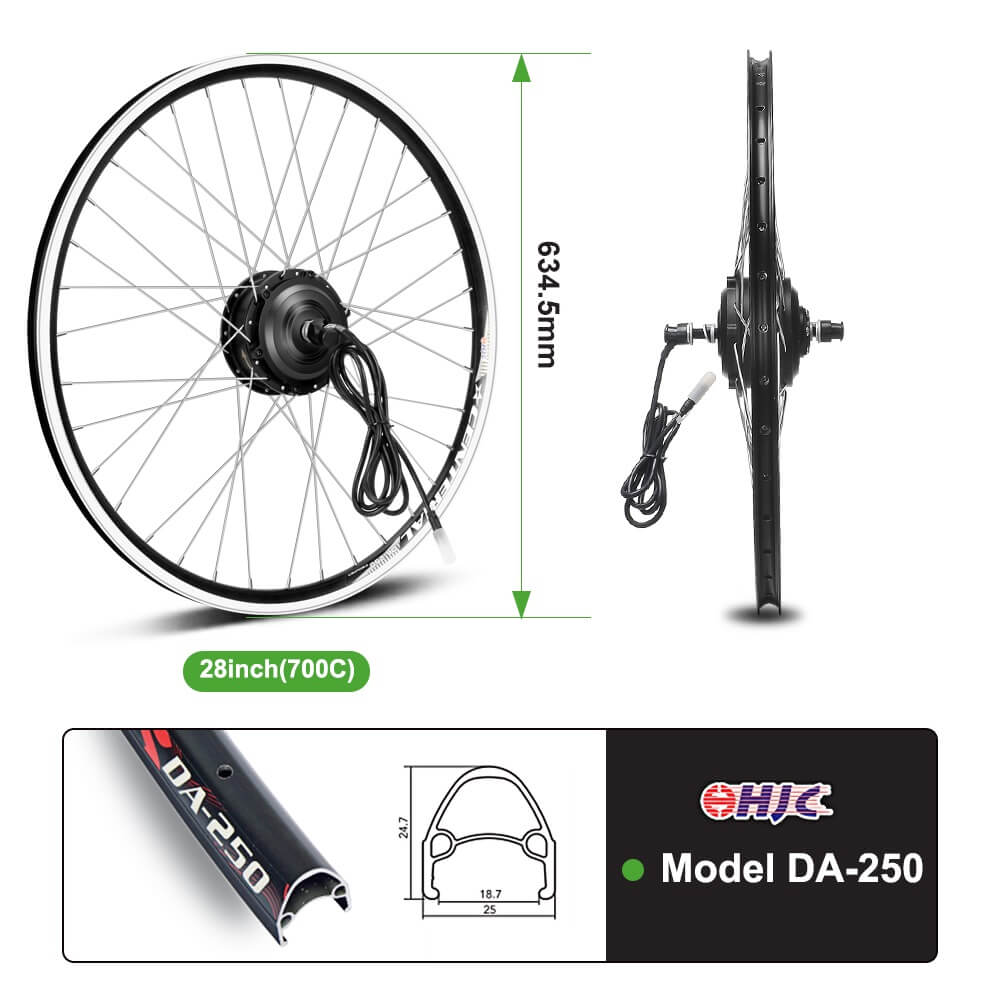

3) comes with 28" double wall rim and 13G silver spokes, fit for 28" bikes and some 700C bikes;
4) the max speed of motor is 25km/h;
5) the max torque of motor is 43N.m;
6) compatible with V-brake and disc brake;

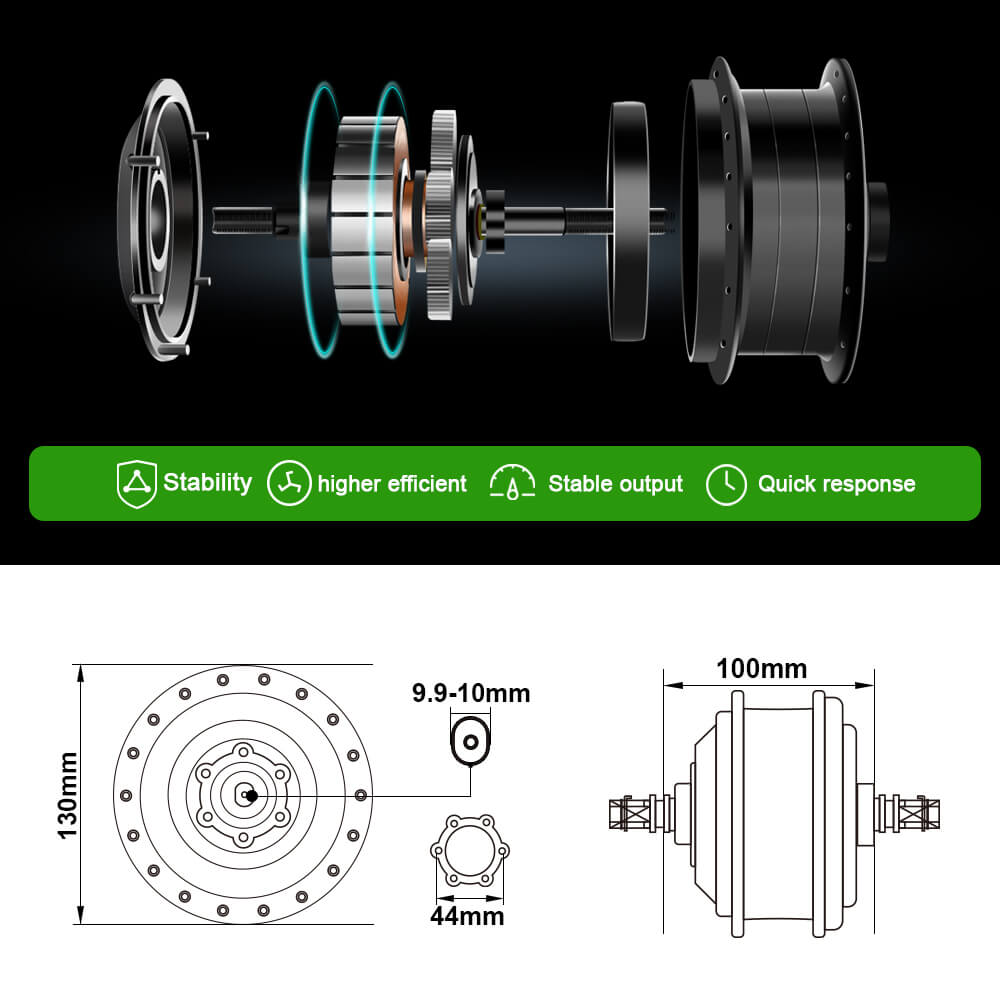

7) requested installation width between forks is 100mm;
8) 36V 15A Lishui controller, connected to motor, battery, PAS sensor and 5into1 cable;

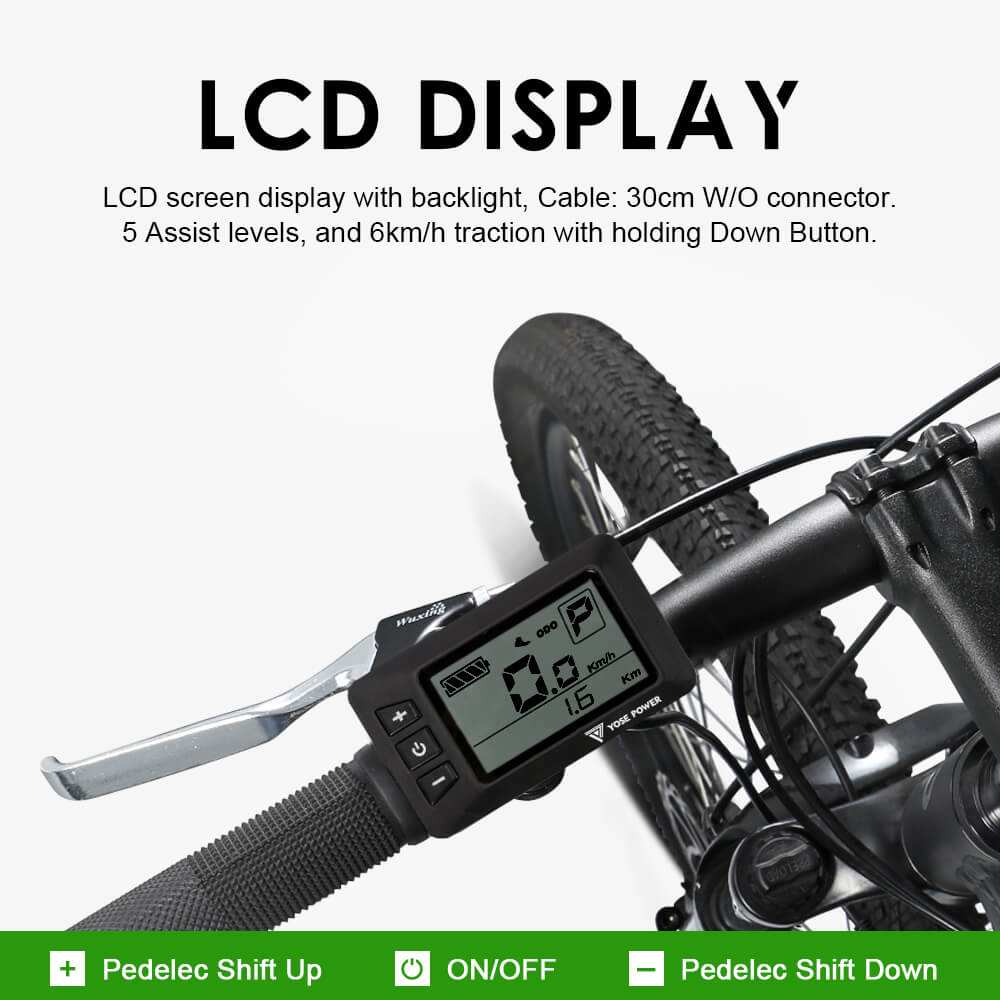

9) 36V KD21C LCD display with backlight, 5 assist levels;

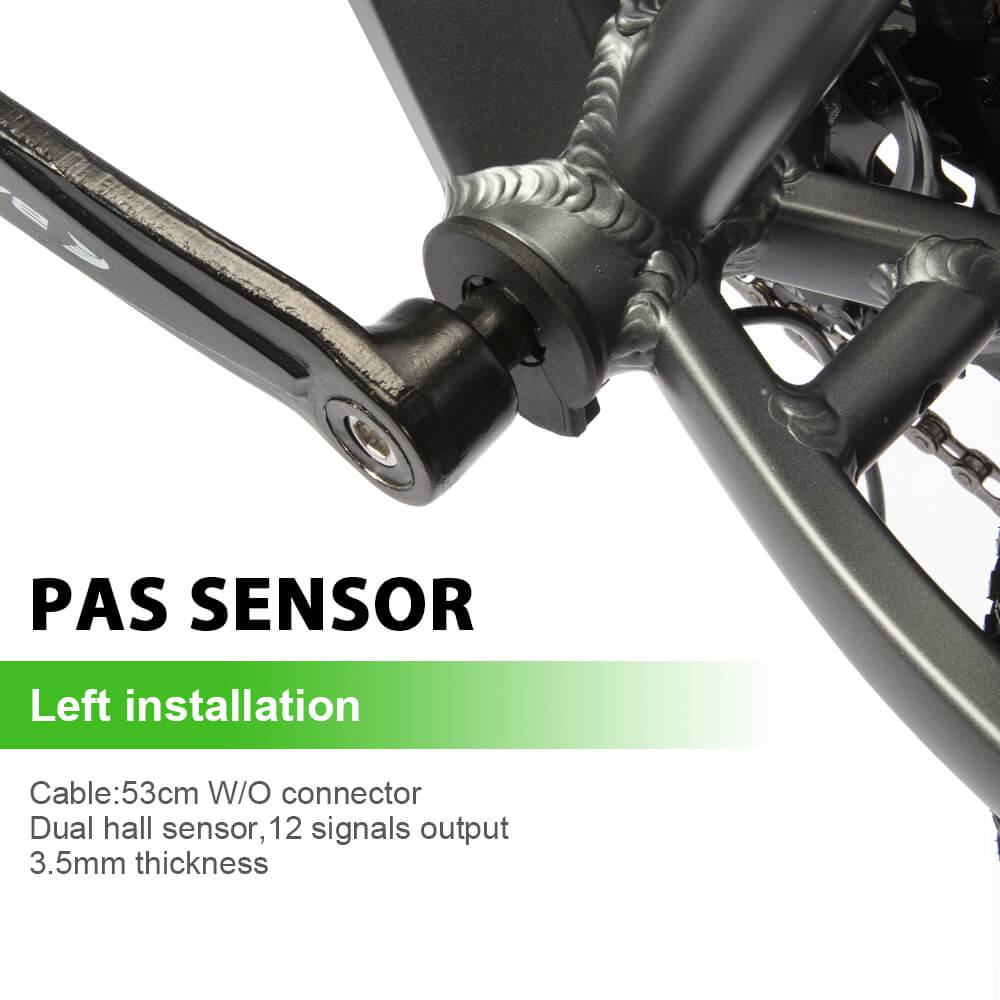

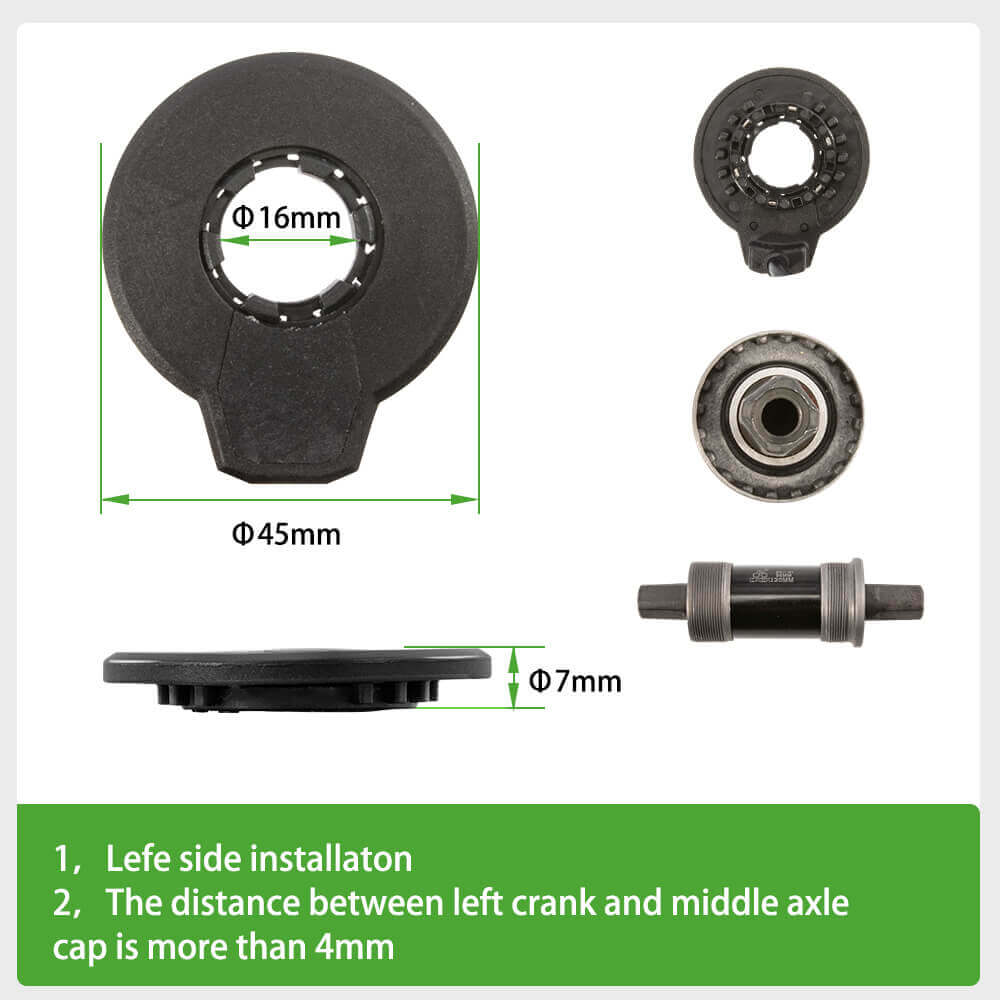

10) PAS sensor for left side of bottom bracket, double hall sensor, 12 signals output;

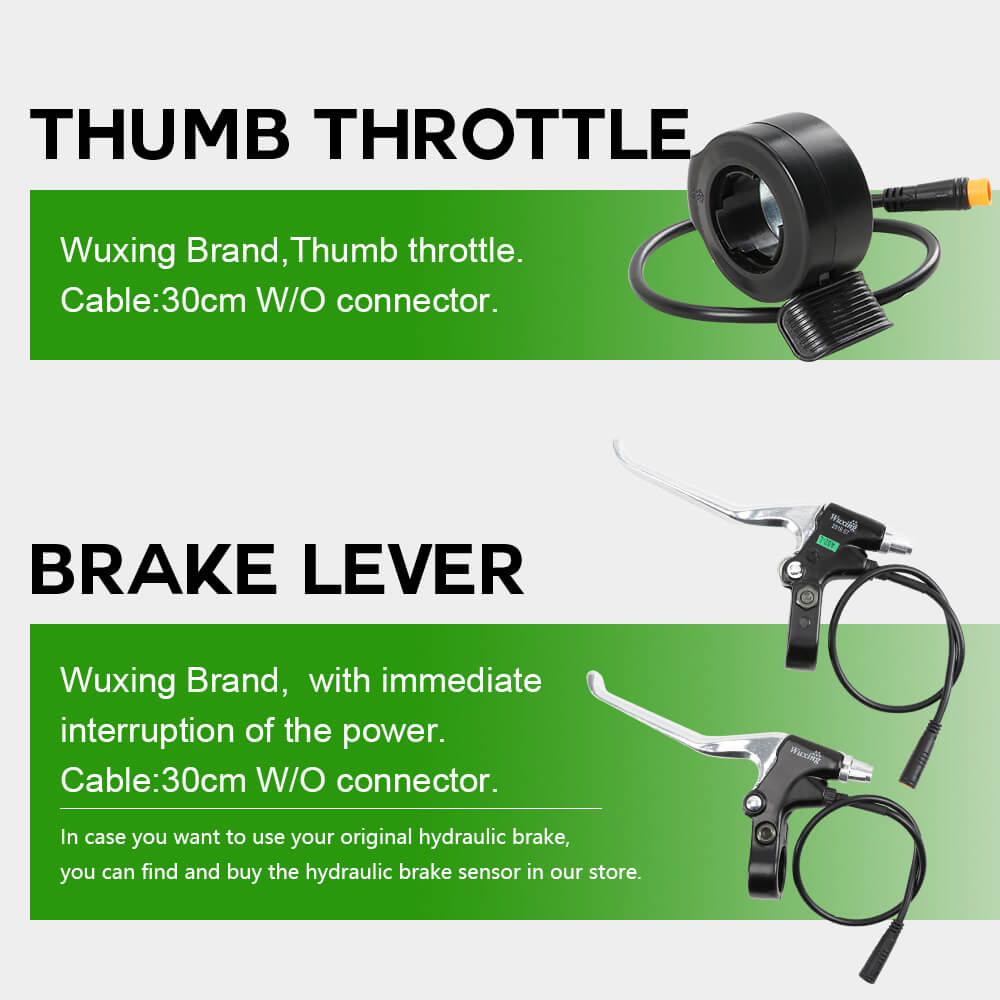

11) thumb throttle;
12) mechanical brake levers;

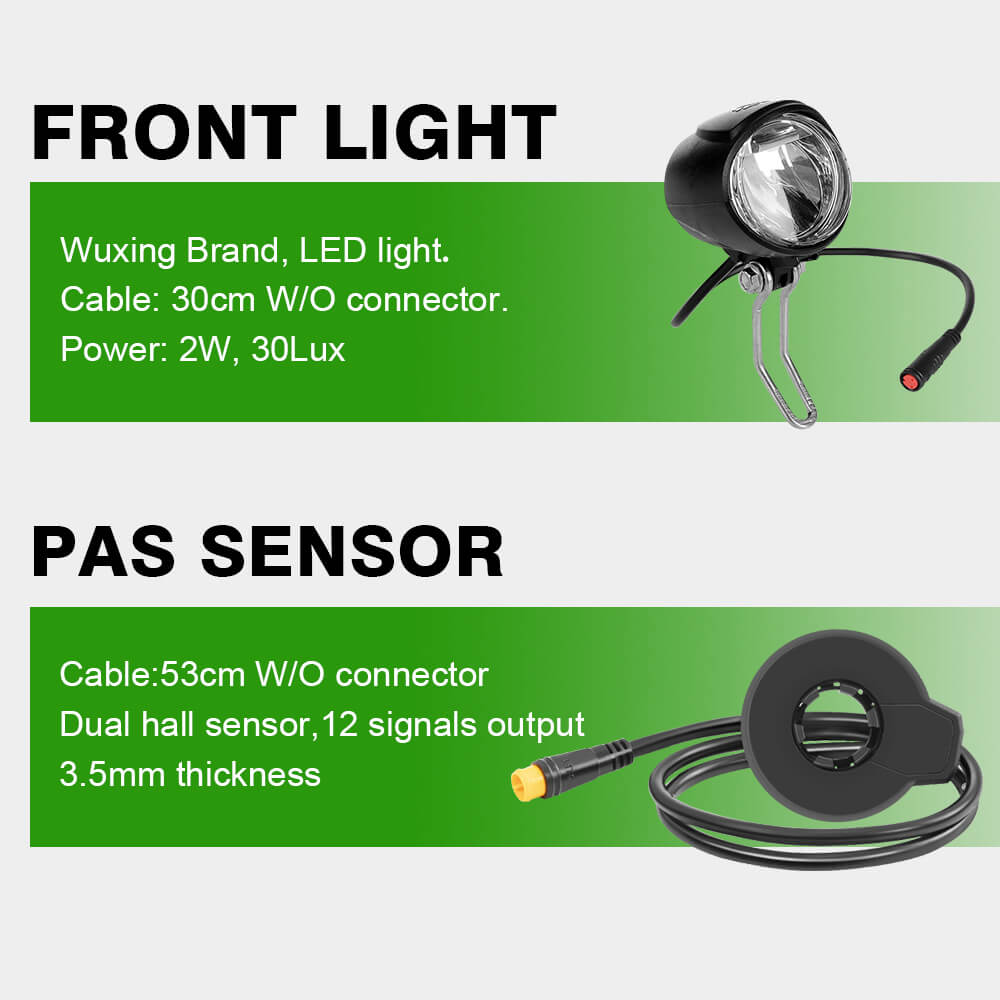

13) front light, switch with pressing "+" Button for a while on display.

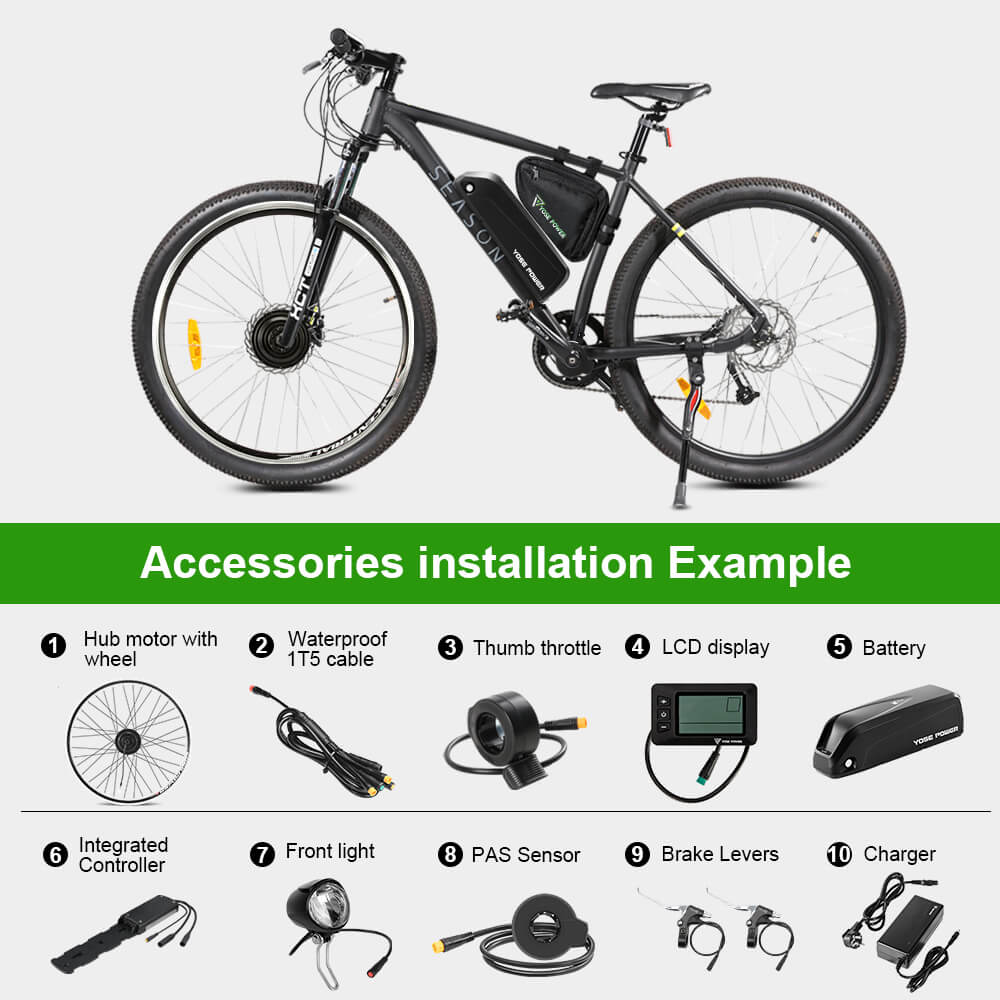

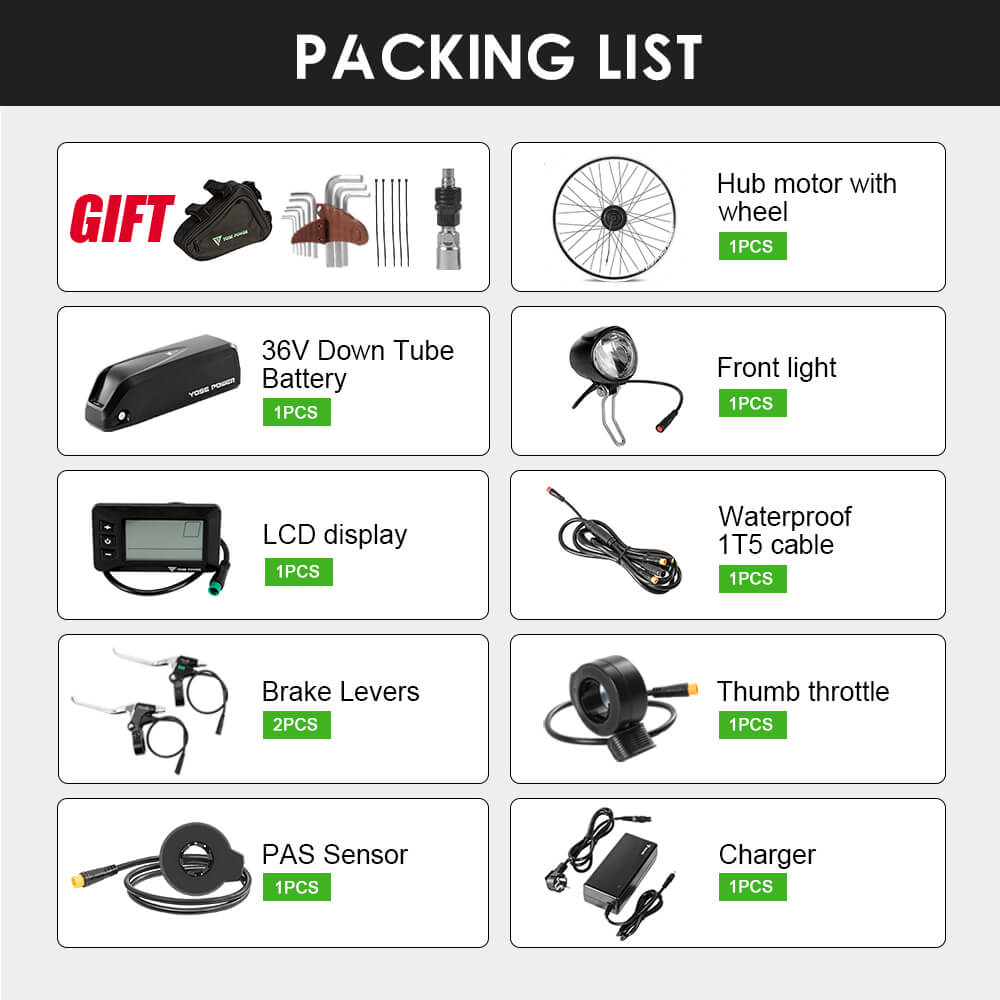

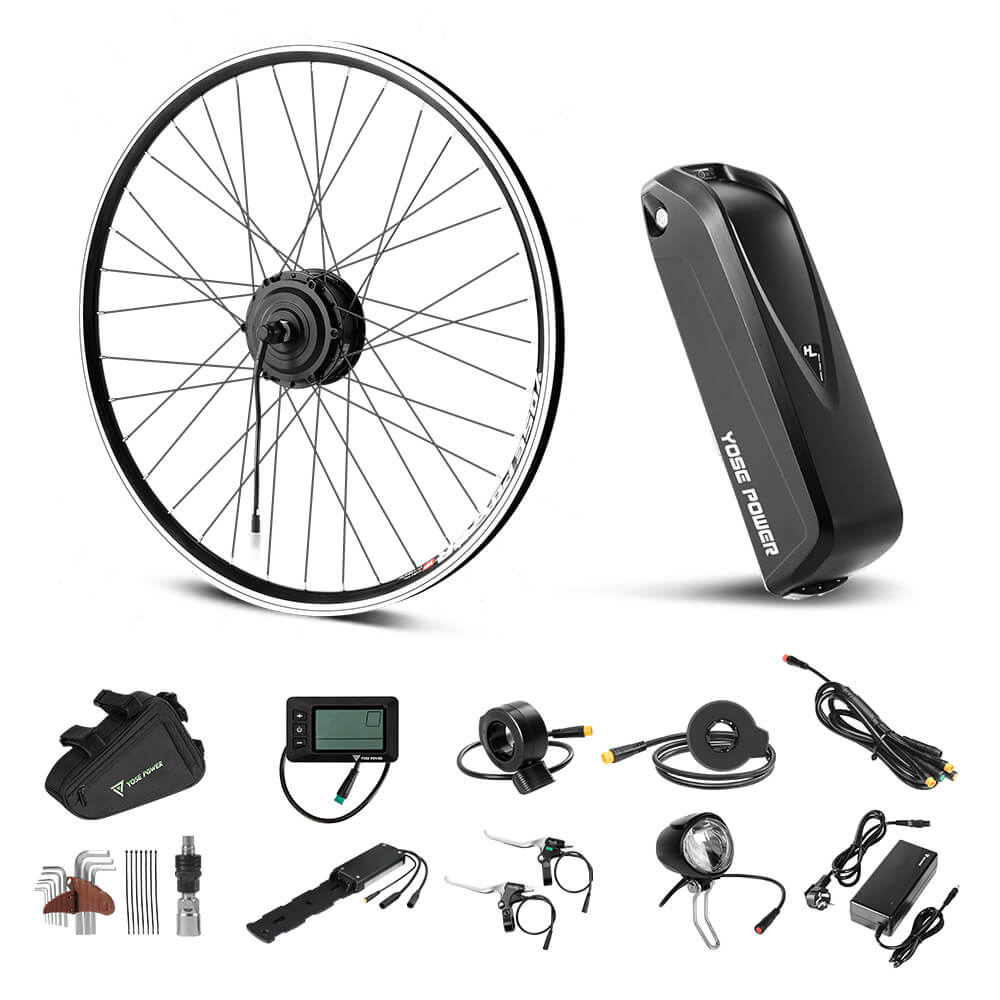

2. Packing List
1 x front motor with 28" rim
1 x down tube battery
1 x charger
1 x controller
1 x LCD display
1 x PAS sensor
1 x thumb throttle
1 x 5into1 cable
2 x brake levers
1 x front light
1 x power cable to battery
1 x controller bag
1 x free tools

3. Additional Information
* The warranty of motor and battery is 18 months. Other parts in kit have warranty of 12 months.
* The shipping takes 2-4 working days in Germany. In other countries, the shipping takes 4-8 working days.
* The max speed of motor is 25km/h. It can be set on display, but the speed limit can't be canceled.
* The pedal sensor in kit doesn't fit for Hollowtech II and Octalink. You will need this pedal sensor: https://yosepower.com/products/hollowtech-ii-sensor
* The brake levers in kit are not suitable for hydraulic brake. You will need these brake sensors: https://yosepower.com/products/hydraulic-brake-sensor
* These batteries can be bought separately as replacement:
36V13Ah/14.5Ah: https://yosepower.com/products/36v-13ah-14-5ah-down-tube-battery
36V18Ah: https://yosepower.com/products/36v-18ah-e-bike-li-ion-battery-hailong-mix-with-5-gold-plated-round-plug-replace-for-yose-power-13ah-hailong-battery

4. Important Notice for Recycling of Used Batteries & Motor Kits
* As a professional seller, we strictly abide by local laws and regulations to ensure product's quality, transportation and storage safety, environmental protection.
* According to electronic consumer goods recycling regulations, batteries and motor kits  must not be disposed of with household ordinary waste.
* Consumers are obliged to dispose of the used electronic goods to the professional recycling agency in local for proper disposal. They must not be arbitrarily throw into the trash. Please protect the environment!
