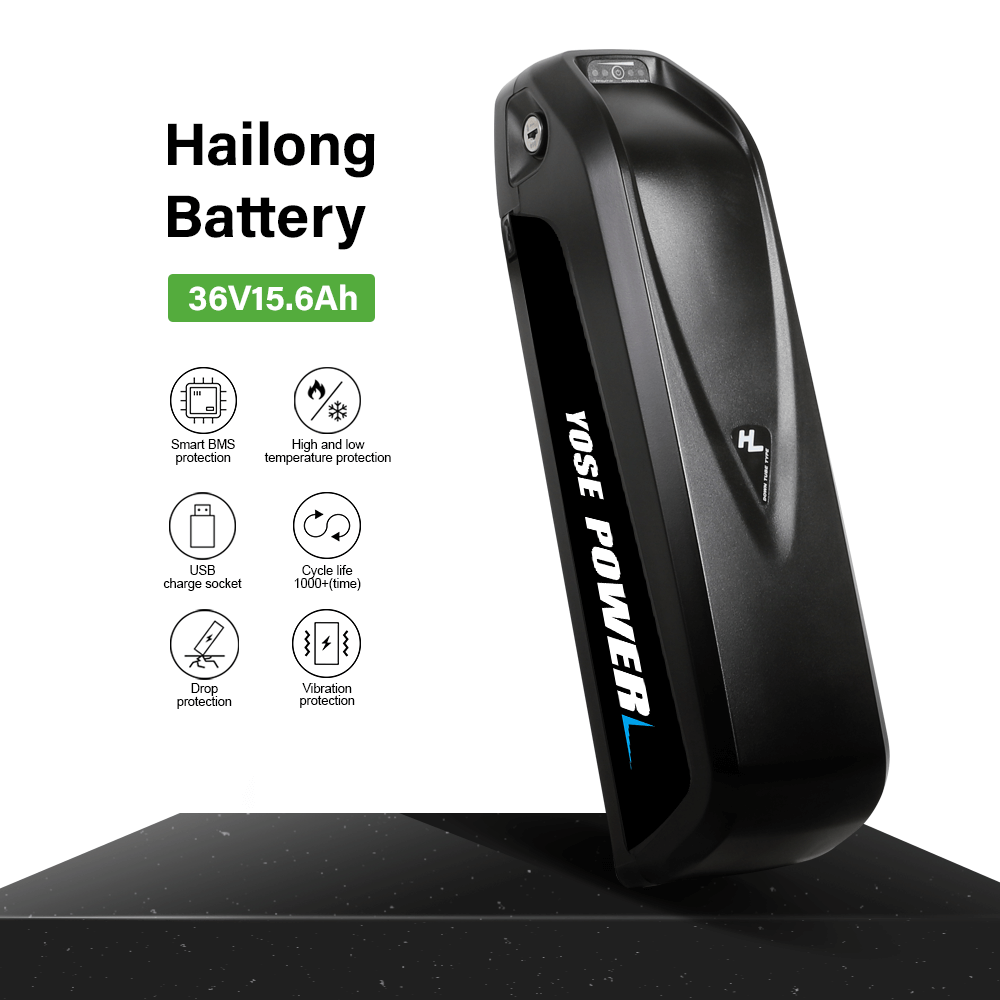

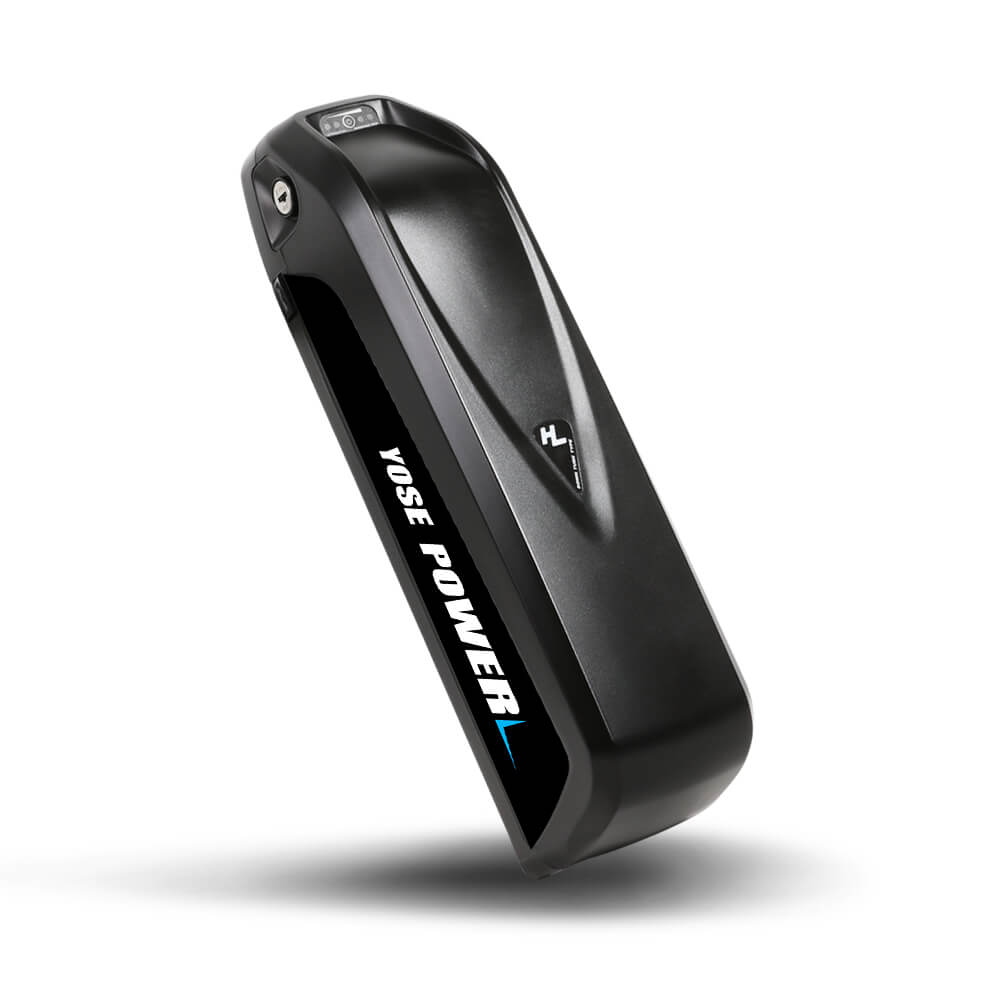

Original Cell 36V15.6Ah/48V12.5Ah Down Tube Battery Lithium-ion Battery Electric Bicycle Bottle New Black DIY (not same as 36V Hailong battery)

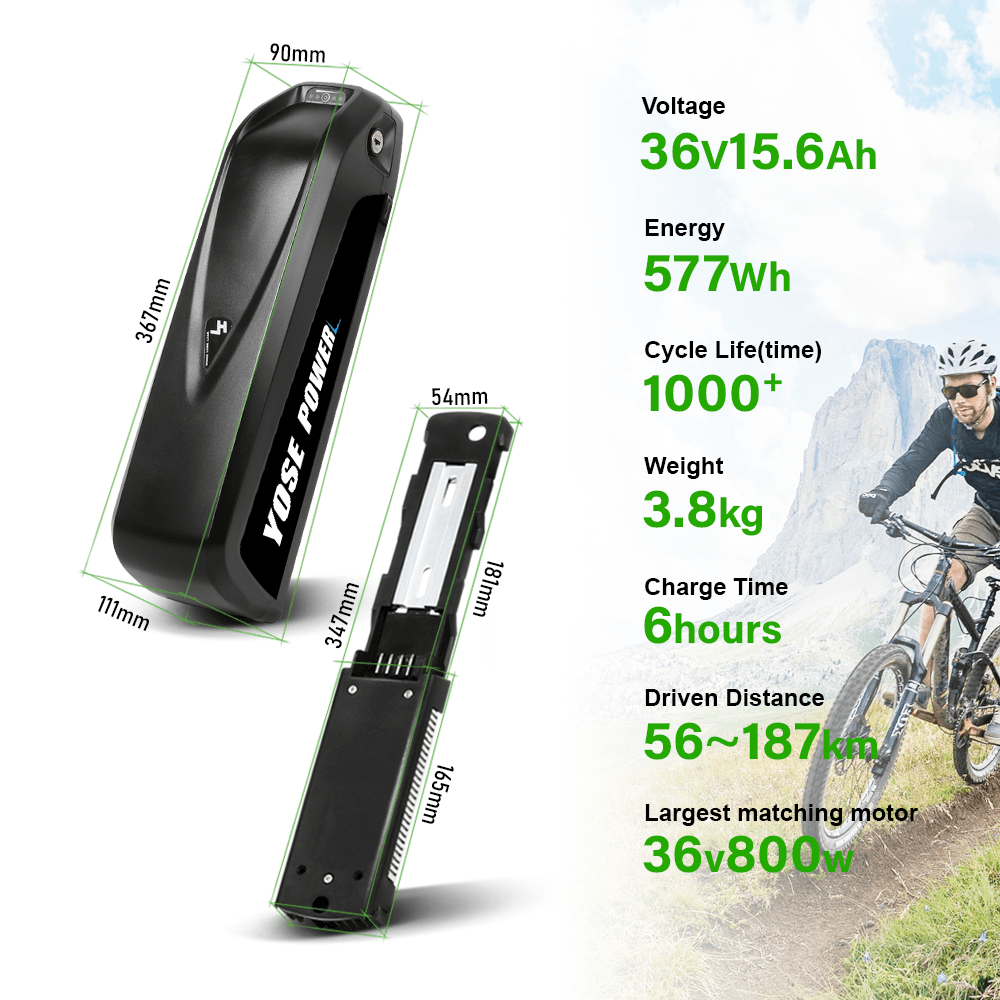

Voltage: 36V / 48V
Capacity: 15.6Ah/17.4Ah / 12.5Ah
Energy: 577Wh/644Wh / 601Wh
Weight(with holder): ca. 4.0kg/3.8kg / 4.2kg
Cell: High Power 18650
Cycle Life(time): 1000+
Standard Current: 10A
Max Current: 20A / 30A
Protect Current: 50A / 60A
End Voltage: 28V / 36.4V
Charge Voltage: 42V / 54.6V
Charge Current: 2A / 3A

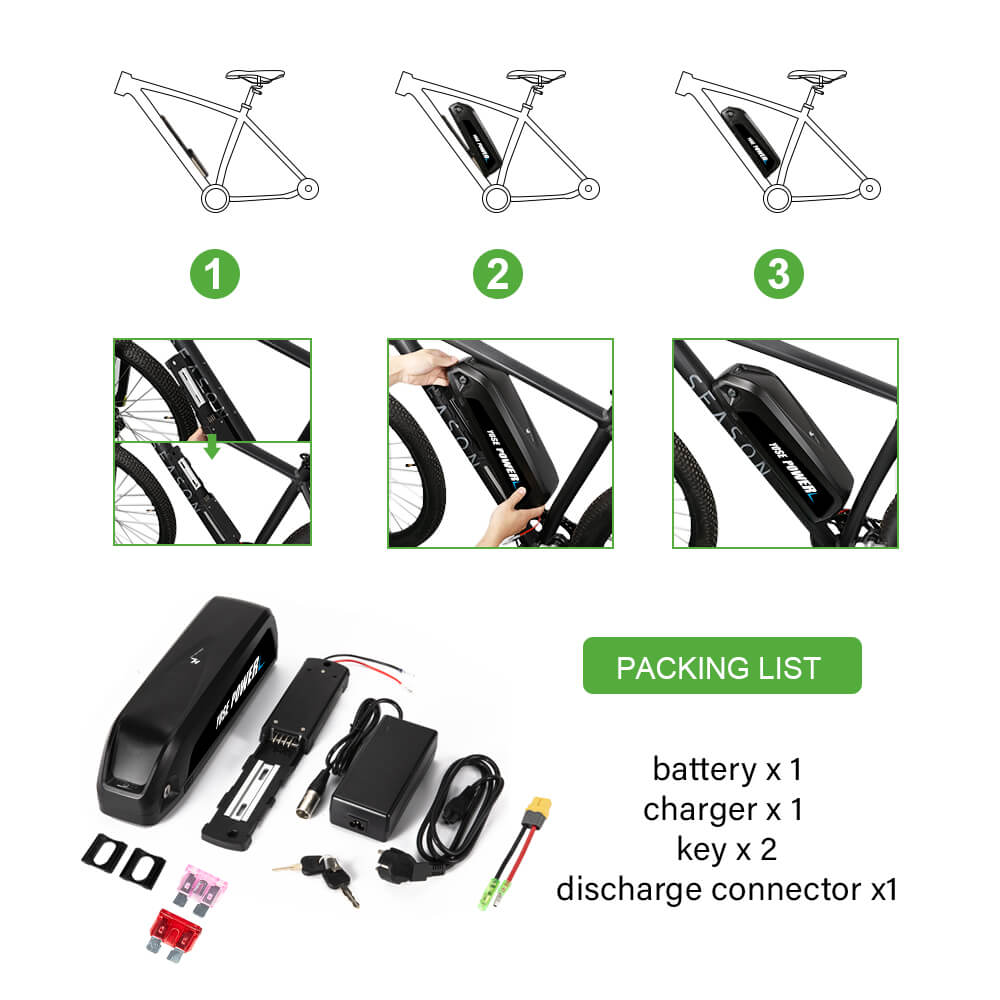

Battery x 1
Charger(EU standard) x 1
Key x 2

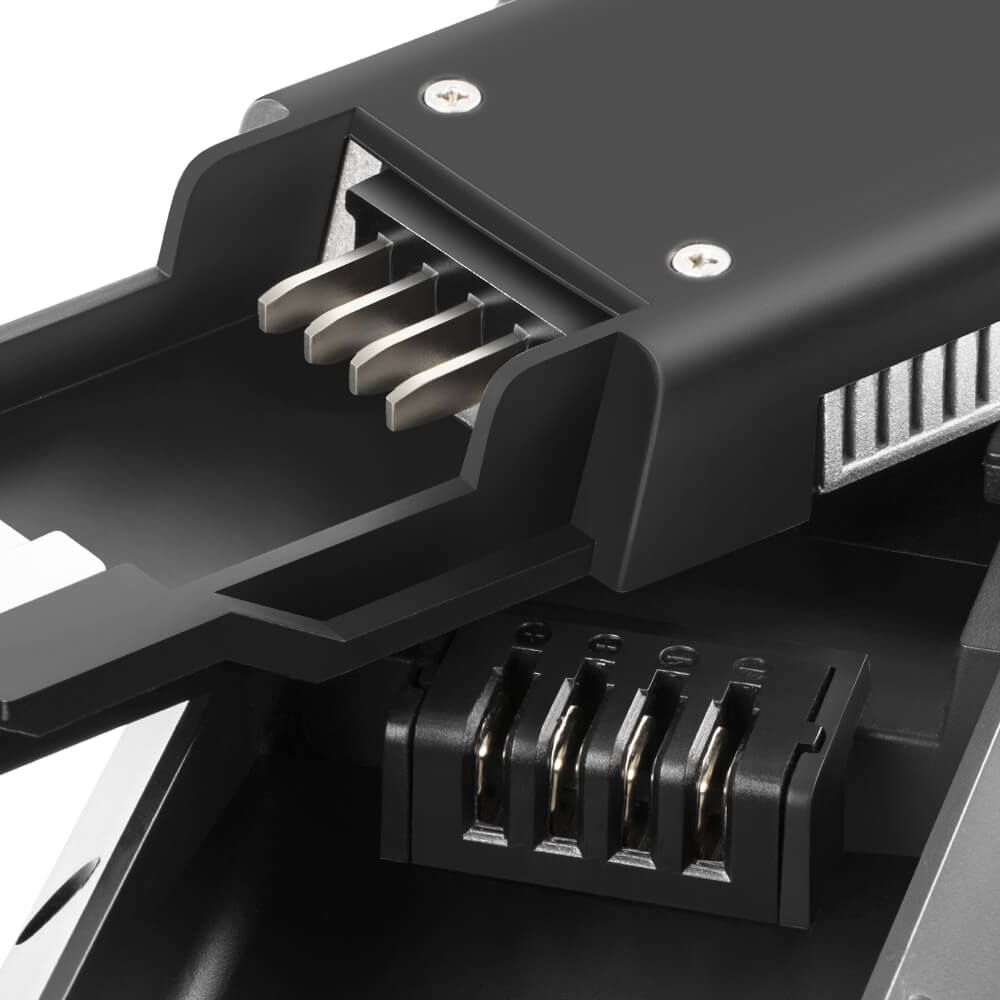

Discharge connector x1
*A 3pins charger will be sent with 36V 15.6Ah battery. But 3pins charger or DC2.1 charger are sent randomly with 48V 12.5Ah battery.
*Please read the instruction manual carefully after received the package, this will help you to use the product effectively.
*Battery delivery cost much more than ordinary goods, in order to reduce the return shipping cost, please make sure: battery and motor should have the same voltage.e.g. 36V10Ah vs 36V350W.
*If you want to return our battery back, please pay attention to the following points to avoid short circuit caused by improper operation :
1. If the battery has a switch, be sure to turn off the power switch.
2. Please keep the positive and negative poles of the battery insulated just like the battery you received.
3. Please use foam or other materials to fix the battery to avoid the battery shake in the carton.
4.Important notice for recycling of used batteries
*As a professional battery distributor, we strictly abide by local laws and regulations to ensure battery quality, transportation and storage safety, environmental protection.
*According to the battery regulation, batteries must not be disposed of with household ordinary waste.
*Consumers are obliged to dispose of the used batteries to the professional recycling agency for proper disposal. They must not be arbitrarily throw into the trash. Please protect the environment!
All the contents including words, pictures and videos are original made by YOSE POWER.
It is not allowed to plagiarize without permission or we keep the right to pursue legal responsibility.
I've covered about 200km on my DIY ebike using this battery Nd it's performed excellently. I've never run out of battery but it's looking like it can achieve a range of about 80 miles on full pedal assist along mainly flat roads on my commute.
I mounted this battery on my pannier rack even though it is for a downtube. I felt that was safer and more servicable. I manufactured a mounting plate and drilled holes in the top of the pannier to bolt on safely.
I use this on a 48x16t single speed vintage bicycle with 250w hub motor.
Till now everything works really finde. A torque arm might be a useful gadget instead of the hex tools.
Ordered the kit, installed and tested. It goes great, plenty of power, and it runs quiet.
36V15.6Ah/48V12.5Ah E-Bike Li-ion Battery DIY Electric Bicycle
Ho installato la batteria Li-on Elettric Bicycle su la mia bicicletta a cui avevo già installato Kit Bike Yose Power.
Ho pure già viaggiato con l'uso della batteria e devo dire che sono pienamente soddisfatto.La batteria ha una lunga autonomia e posso toglierla dalla bici per ricaricarla in casa.Pienamente soddisfatto.
